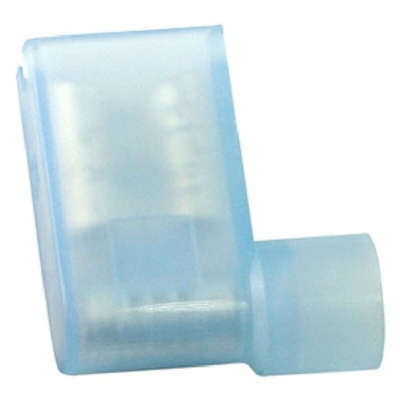

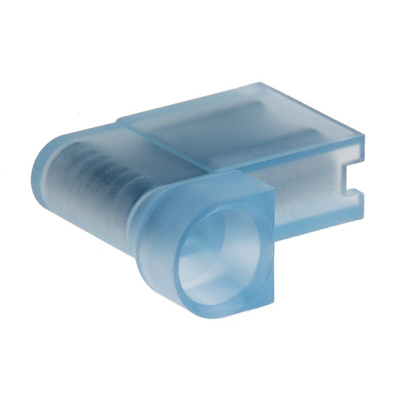

RS PRO Blue Insulated Female Spade Connector, Flag Terminal, 6.35 x 0.8mm Tab Size, 1.5mm² to 2.5mm², Контакты

RS PRO Blue Insulated Spade Connector, 6.35 x 0.8 mm Tab Size, 1.5 mm² to 2.5 mm²

This RS PRO slip-on spade connector allows you to connect and disconnect two wires quickly. It has brass contacts for effective conductivity, as well as a full nylon casing for insulation and electrical short-circuit protection. The insulation produces a 'mini-enclosure' where the two contacts meet, keeping liquids and impurities away from the electrical connection.


For ease of use, it's colour-coded in blue to indicate the necessary wire allowances. It has a 90-degree angle for a more convenient crimp, making it a good choice for difficult-to-reach areas. All you'll need is a pair of crimping pliers for installation. Flag terminals like this one are commonly used in both automotive and industrial settings.

Features and Benefits

• Blue colour


• Brass contact material


• Flag width of 7.6 mm


• Nylon insulation material


• Maximum wire size of 14 AWG (American Wire Gauge)


• Maximum wire size of 2.5 mm²


• Minimum wire size of 16 AWG (American Wire Gauge)


• Minimum wire size of 1.5 mm²


• Overall length of 15.2 mm


• Tab thickness of 0.8 mm


• Tab width of 6.35 mm


• Crimp termination method


• Flag terminal, shrouded type

Small Pack Size

Per Unit, RS stock no: 125-1950

Large Pack Size

RS stock no: 270-7593

RS PRO Datasheet
