R05P22005D, Recom R05P DC-DC Converter, -5V dc/ -200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +95°C Max Temp -40°C, Преобразователь

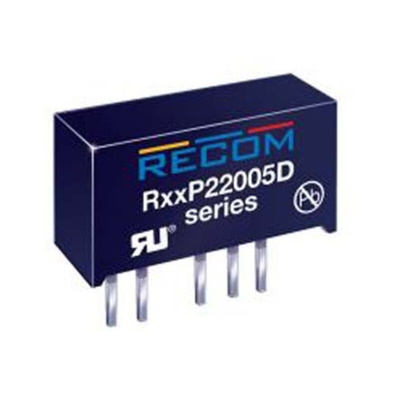

Recom RxxP22005D Series Isolated DC/DC Converter

The RxxP22005D Series are designed especially for SiC-MOSFET drivers in efficiency focused applications such as electrical vehicles, renewable-energy conversion and high powered industrial drives. These converters enable the gate driver to apply optimal turn-on and turn-off voltages (VGS) by providing asymmetrical +20V/-5V outputs. As unregulated 2 W converters, the devices feature power-sharing outputs that can be used with equal-power (asymmetrical current) or equal-current (asymmetrical power) loads. The RxxP22005D series operates at up to 85% efficiency and are available with 5 V dc, 12 V dc, 15 V dc or 24 V dc input voltages. These converters meet harsh environmental requirements with their operating temperature range of -40°C to +95 °C (with derating).

Features and Benefits

High 5.2kVDC/1 minute Isolation
Power Sharing
Efficiency up to 85%
Wide Operating Temperature Range

Standards

UL60950 and IEC/EN60950

RECOM DC-DC Converter, 5.2kV Isolation Voltage, 2 Outputs - R05P Series - R05P22005D

Make your primary load power supply compatible with your secondary load requirements with this DC-DC converter from RECOM. It's designed to deliver efficient power conversion for SiC MOSFET drivers, so you benefit from a safe and reliably regulated DC power supply to your system. As the device is isolated, it protects sensitive components from outside electrical interference. For safety, its plastic casing is flame-retardant, so there's minimal risk of it catching alight in the event of a fire. As this component produces very little heat, no forced fan cooling is needed.

Features & Benefits

• Standard case size of 19.5 (L) x 9.8 (W) x 12.5mm (H) for easy integration into your system
• Broad operating temperature range between -40°C and +95°C makes it suitable for demanding industrial settings
• Typical efficiency of 83%, indicating minimal power loss during the switching process
• Two asymmetrical outputs of -5V DC and +20V DC, which allows a gate driver to optimally turn voltages on and off

Applications

• Medical and pharmaceutical industries
• Electric motors
• Electronics manufacturing

Is this device protected against short circuits?

Yes, this converter includes short-circuit protection, which helps to safeguard equipment against power faults.
