RS PRO Workbench, 300kg Max Load, Adjustable Height, 650 → 900mm x 1500mm x 700mm

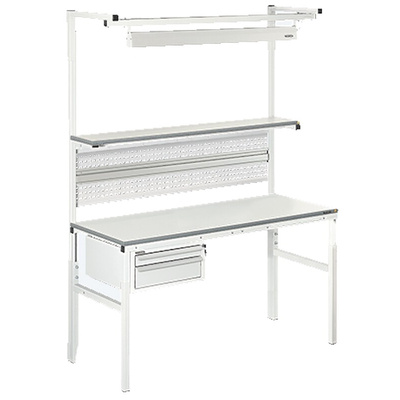

RS Pro ESD Workbench – 1500x700mm

The RS Pro ESD (Electro Static Discharge) Workbench is an ergonomic designed workbench complete with a permanent static safe surface. The permanent static safe surface is a laminate coating that will last the lifetime of the table. This workbench can hold a max load of up to 300KG and has a total resistance of 10E8 Ω.

Designed with the intention that a user may potentially sit at this workbench for hours, this ESD workbench features a 1500x300mm shelf to support a highly efficient working area and much tidier workspace for more productivity. Above the working area is a built-in work light to help users in any environment to provide an enriched lighting environment. Just below the 300mm shelf you will find a bin rail with a max capacity of 10kg to help you organize even more, below is a list of compatible bins. This workbench also contains a perforated panel which can house any universal peg style storage solutions. A movable suspended drawer also comes neatly tucked under the table for more storage.

Static dissipative surfaces are a key to a safe working environment when working with anything that has the potential to store electricity. This workbench can provide a direct ground. The RS Pro ESD Workbench will allow for a controlled way for the dissipation of any stored static electrical energy.

In the box – Bench frame, ESD Worktop, 300mm shelf, overhead working light, bin rail, perforated panel and drawer unit.

Compatible bins for the bin rail –
550-325 – ESD Bin 101x167x76mm
121-8488 – ESD Bin 375x420x182mm
121-8486 – ESD Bin 350x205x132mm

Features and benefits
•Permanently ESD Safe lamination –
•Adjustable working – Easily adjustable height ranging from 650-950mm
•1500x300mm Shelf – Holds up to a 50KG load and has all the ESD properties.
•Resistance of 10E8 Ω
•Overhead light – 2 energy efficient luminescent 54W lamps. Quick switching with no shimmering or strobing.
•Max load capacity of 300KG
•Bin rail – a 1500mm bin rail that can hold a total of 10KG with universal bin compatibility.
•Under bench drawer unit – 550mm telescopic drawers & lock with ESD properties. Maximum load capacity is 30KG.
•Temperature resistance of up to 300°C

Can I hang an ionizer on this workbench?
Yes. Ionizers can be hung behind the light from cantilevers.

Does this include a power panel?
No. This kit does not include any kind of power panels.

Can I fit an Earth Bonding Box to this?
Yes. 392-135 is a compatible bonding box but other devices should work sufficiently.

This workbench adheres to standards; EN 61340-5-1 and IEC 61340.

Standards

EN 61340-5-1

Datasheet
