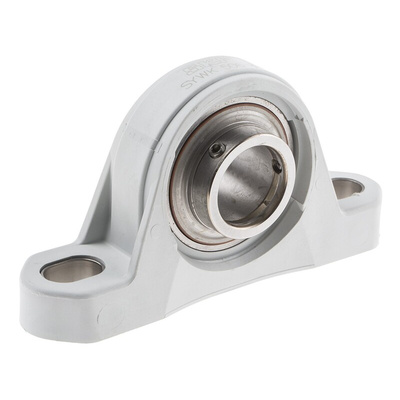

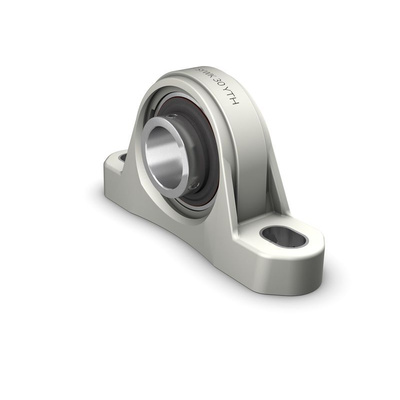

SKF SYWK 20 YTH Pillow Block Bearing -, 20mm ID

SKF Pillow Block Bearing, 20mm Shaft Diameter, 5,000r/min Limiting Speed - SYWK 20 YTH

Use this pillow block bearing from SKF to reliably support rotating parts of your equipment. It features a mounting block that's secured to a base and a housed bearing that holds the shaft and allows it to rotate. The housing is made of composite material that makes it suitable for use in the food industry. This material is also resistant to corrosion and has an excellent strength-to-weight ratio, so you can use it in harsh environments. Inner rings with set screws secure the shaft to the bearing, providing the firm grip needed for optimal performance.

• Static load rating of 6.55kN and dynamic load rating of 10.8kN for use in heavy-duty applications
• Screw mounting holes eliminate the need for complex installation tools, saving time and effort
• Limiting speed of 5,000r/min for use in rapidly rotating machinery

Applications

• Assembly lines
• Food production
• Packaging systems

What maintenance does this pillow block bearing need?

Because this pillow block bearing is used for rotating shafts, it's important to regularly lubricate its workings with grease to reduce friction and noise.

Datasheet

Catalogue - SKF Food Line Y-Bearing Units

Datasheet - SYWK 20 YTH
