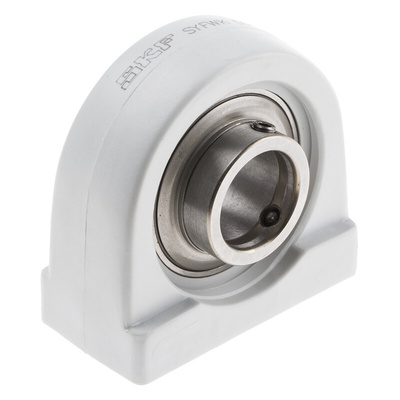

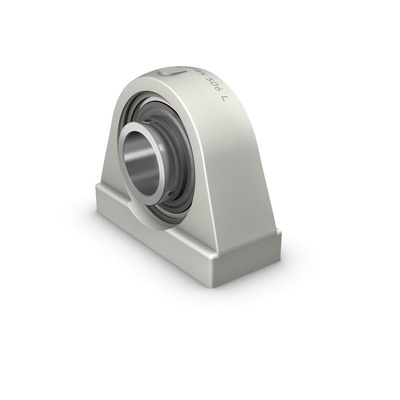

SKF SYFWK 20 LTHR Pillow Block Bearing -, 20mm ID

SKF Pillow Block Bearing Unit With Short Base, 20mm ID, 33.3mm Centre Height - SYFWK 20 LTHR

Need a bearing unit that's suitable for use in food-processing applications? Choose this pillow block bearing unit from SKF. It features an insert bearing made from corrosion-resistant stainless steel for use in damp environments. The durable thermoplastic housing is resistant to detergents and a broad range of chemicals, so it can withstand frequent washdowns. As the unit comes pre-lubricated with an odourless and tasteless food-grade grease, it's protected from friction and wear, and safe for contact with food products. This device is designed for use with SKF Food Line Y-housings and Y-bearing units for simple assembly.

• Limiting speed of 5000rpm (rotations per minute) for use in high-speed applications
• Hexagonal key slot for quick mounting with grub screws
• Light weight of 0.26kg to minimise strain on equipment
• Dynamic load rating of 10.8kN and static load rating of 6.5kN to handle heavy loads

Applications

• Food production and packaging
• Distilling and bottling plants

Can this pillow block bearing unit handle misalignment?

Yes, this unit can handle initial static misalignment, so it's a user-friendly choice.

Datasheet

Datasheet - SYFWK 20 LTHR
