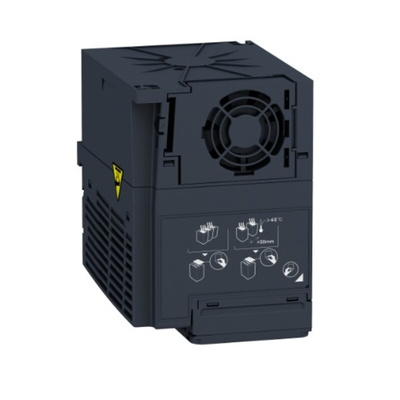

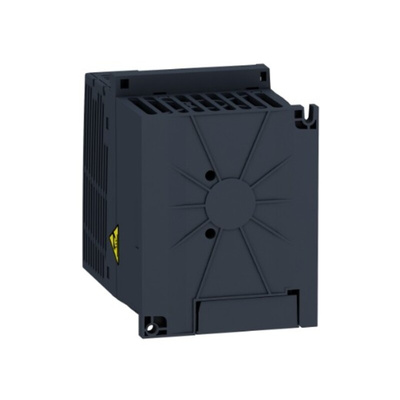

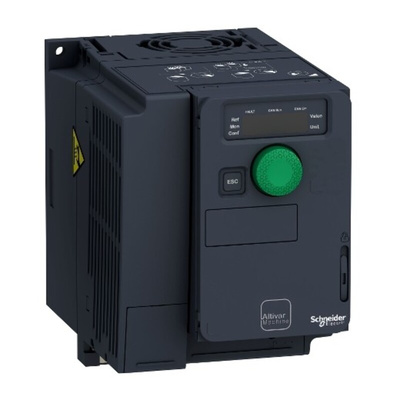

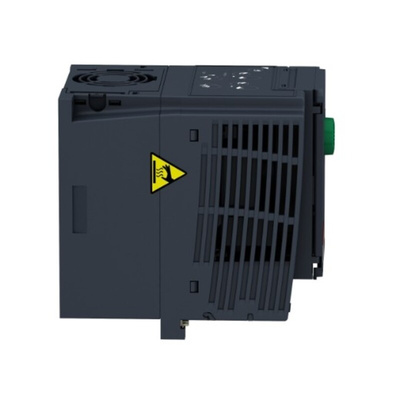

ATV320U11N4C, Schneider Electric Variable Speed Drive, 1.1 kW, 3 Phase, 400 V ac, 5 A, ATV320 Series

Schneider Electric Variable-Speed Drive, 3 Phase, 5A Current Rating - ATV320 Series - ATV320U11N4C

This three-phase variable-speed drive from Schneider Electric provides precision control over your machinery. It's an inverter that lets you adjust the speed and torque of synchronous and asynchronous motors to optimise performance. As it converts AC to DC power, the unit reduces electrical energy losses and boosts efficiency. The 1.1kW power rating makes it suitable for heavy-duty use. LED signals clearly indicate operational status, so you can easily detect faults and prevent production downtime.

Features & Benefits

• Wide operating temperature range between -10°C and +50° (without derating) for use in harsh ambient conditions
• Open-loop motor control for better automation when used at low speeds or with start/stop applications
• PROFIBUS connectivity to streamline automated processes
• IP20 rating indicates the unit is touch-proof to prevent electric shocks and improve safety

Applications

• Material-handling conveyors
• Automated labelling and bagging systems
• Healthcare industry

What's the transmission rate of this variable speed drive?

This variable-speed drive transfers data at up to 1Mbps.

Can I install this unit inside an enclosure?

Yes, the unit's design means you can install it in enclosures such as electrical cabinets and machine frames.
