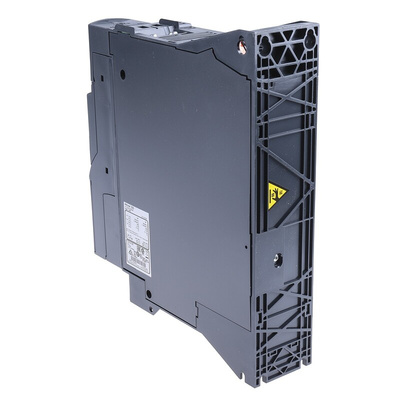

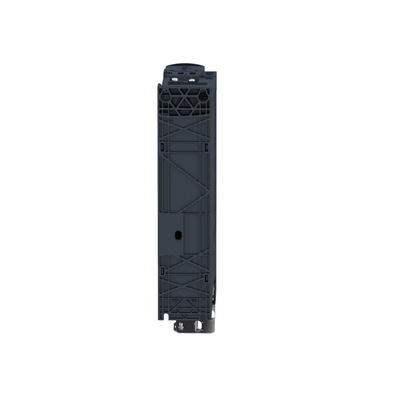

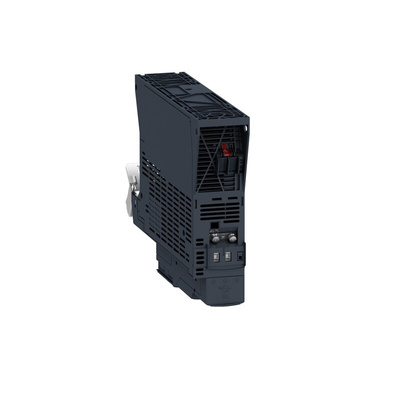

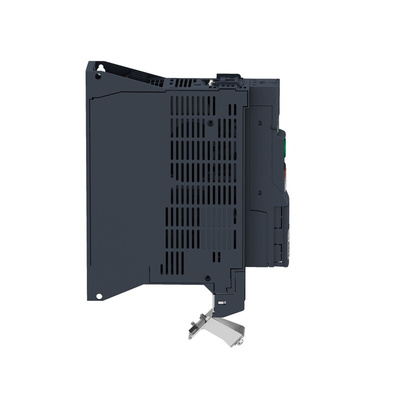

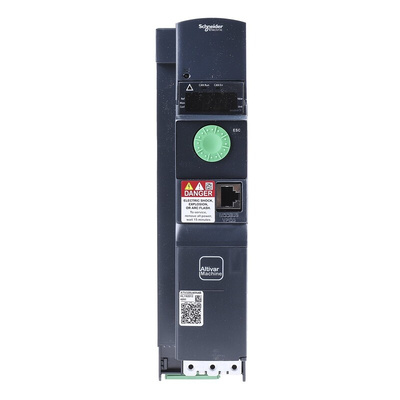

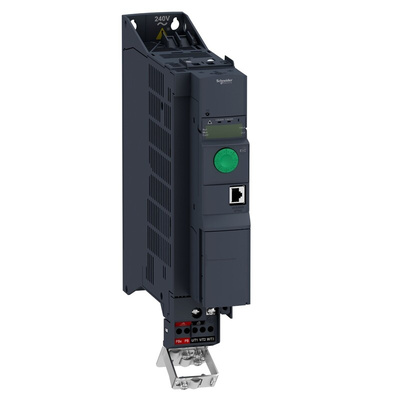

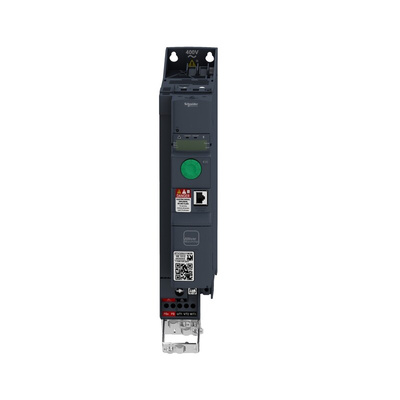

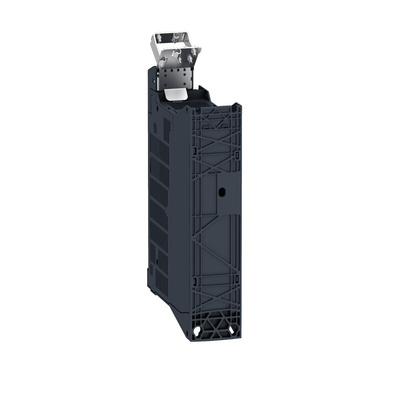

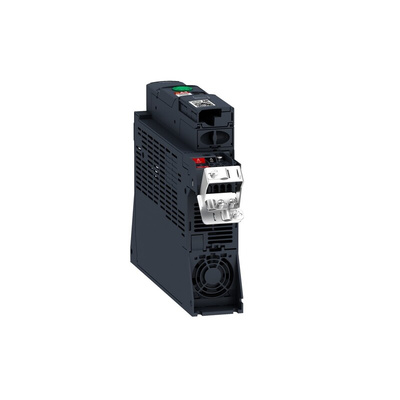

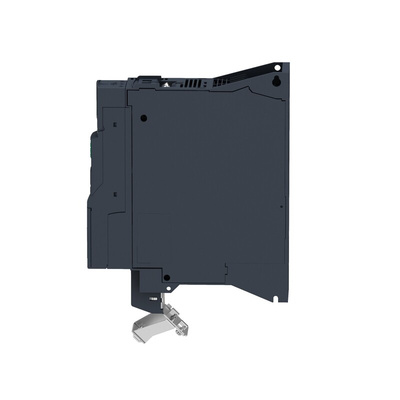

ATV320U40N4B, Schneider Electric Variable Speed Drive, 4 kW, 3 Phase, 400 V ac, 13.7 A, ATV320 Series

Altivar ATV320 Series

The Altivar Machine ATV320 variable speed drives are simple, yet enhanced machines. They have been designed for original equipment manufacturers and meet simple and advanced applications requirements for three phase synchronous and asynchronous motors, from 0.18 to 15 kW. This type of VFD is the perfect solution to help you improve you machines effectiveness across a variety of applications.

Features and Benefits

• Enhanced automation capabilities through open loop motor control being combined with simplicity for asynchronous and synchronous motors – this also applies at a low speed, dynamic accuracy for start/stop applications.
• Advanced connectivity with automation architectures such as EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet.
• Featuring functions such as ATVLogic which bring application expertise and flexibility to the machines.
• The Altivar Machine ATV320 variable speed drives carry on their predecessors’ tradition of robustness and reliability.
• To maximise the machine operation time, especially as the production changes the safety diagnostics and operation, system integration and network configuration can be achieved in a timely manner.
• The ATV320 has been engineered cost effective, easy installation for a number of machine layouts and for the placement for inside in places such as cabinets and machine frames.
• Due to the robust, strong and reliable design these VFD’s and also having IEC 60721-3-3 class 3C3 coated printed circuit boards the variable frequency drives can extend the machine availability in harsh conditions.
• This series have different mounting options, depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side)
• Comprehensive embedded safety accounts for the machine having an additional safety torque OFF, four functions of full safety monitoring to simplify machine certification and compliance with Machinery Directive 2006/42/EC.
• Easy-fit communication cards in cassette format.

Where would you normally find a Variable Frequency Drive?

• The ATV320 series can be used in simple or/and advanced machine requirements.
• This series can be used for mechanical and electrical instillations.
• Material handling – small conveyors
• Packaging – small labelling machines, small bagging machines
• Machinery that has machines fitted with fans - Air or smoke extraction, plastic film making machines, ovens and boilers.
• Simple consumer machines such as handling access barriers, rotating advertising hoardings.
• The health industry such as medical beds and running machines.
• They can also be found in the food and drink industry being used in machine such as mills, kneading machines and mixers.
• These types of Inverter Drives can also be a great solution for companies wanting to hoist goods or materials from one place to another

How to look after the ATV320 Series VFD

The Altivar 12 does not need any preventative maintenance, although we do advise that you perform a few regular checks to ensure optimum delivery.
• The condition and tightness of any of the connections.
• Make sure that the temperature around the unit remains at an acceptable level and that ventilation is effective. The average service life of the fans is an impressive ten years.
• Make sure that if any dust is apparent, it is removed.
• Keep a look out that the fans are always in proper operation and that there is no physical damage to the covers.

Schneider Electric Variable Speed Drive, LED Indicators, 4kW Power Rating - ATV320 Series - ATV320U40N4B

Get your industrial machinery ticking over smoothly with this variable speed drive from Schneider Electric. Its 3-phase configuration ensures your equipment always has a stable and reliable power source. As the unit works with CANopen and MODBUS communication protocols, it's easy to integrate into your setup. Four fixing holes on the body make it easy to attach to your mounting panel. Thanks to a power rating of 4kW, this speed drive is ideal for heavy-duty applications.

Features & Benefits

• Integrated EMC filter minimises EMI for clear and noiseless signals
• IP20 rating indicates it’s finger-safe and resistant to objects larger than 12mm
• Built-in PID controller gives you precise control over machine processes
• Performs reliably in an operating temperature range between -10°C and +50°C so it's suitable for harsh settings
• Vibration resistance of 1gn means it stays secure in shaky conditions

Applications

• Material handling equipment
• Medical devices
• Textile industry
• Bottling plants

How do I configure this device?

You can configure this drive using the SoMove software. This allows you to remotely control and adjust its settings to meet the needs of your motors.

Datasheet

ATV312 32 to ATV320 X-Ref

Altivar ATV320 Catalogue

Green Premium Ecolabel

Product Environmental Profile

Guide - ATV320 Series
