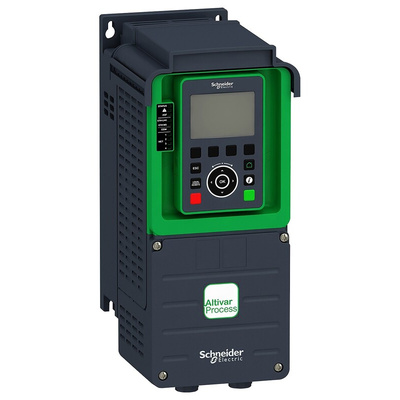

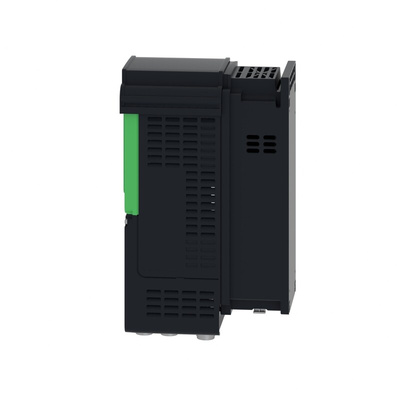

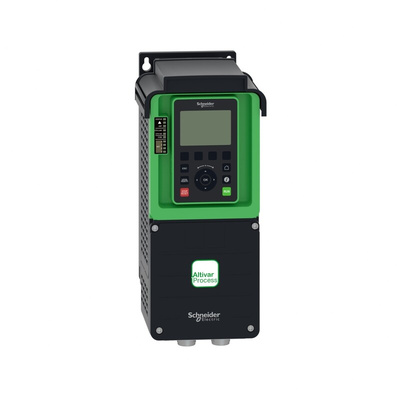

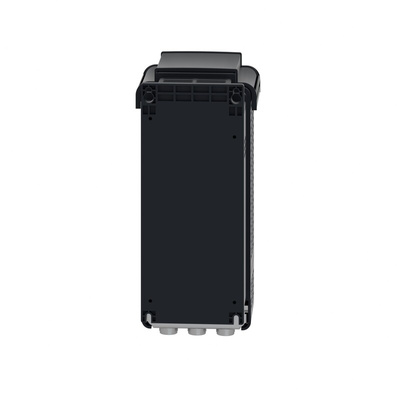

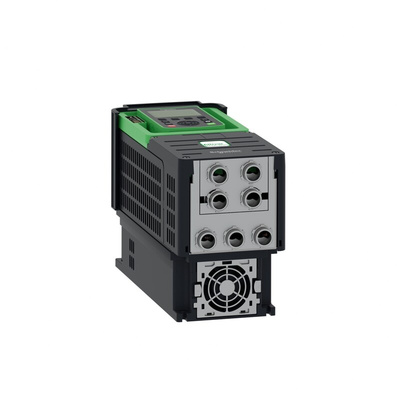

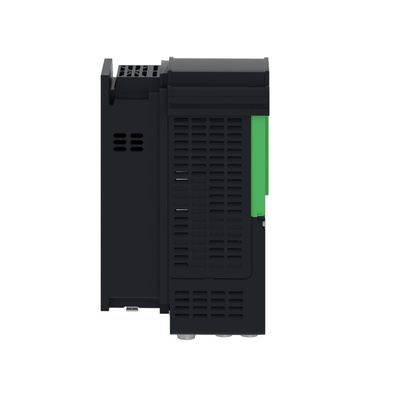

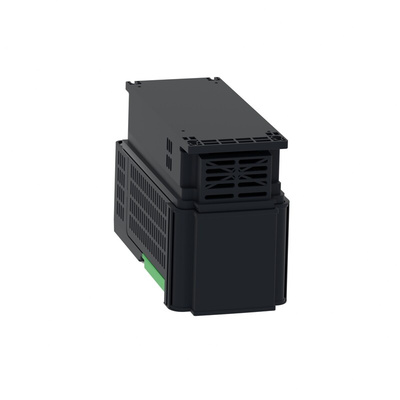

ATV630U55N4, Schneider Electric Variable Speed Drive, 5.5 kW, 3 Phase, 400 V ac, 10.4 A @ 380 V ac, ATV63 Series

Altivar ATV630 VFD Series

The Altivar Process Variable Speed Drive offers your business optimisation, real-time intelligence and provides the efficiency that you deserve. The Altivar Process Drive gives you extensive flexibility in water, wastewater, mining, minerals, metals as well as oil, gas, food and beverages. This series of Variable Frequency Drives is the perfect solution to help you improve your machines effectiveness across a variety of applications. Altivar ATV630 VFD (Variable Frequency drive) Series has an IP21 rating and can been wall mounted. It has a three phase synchronous and asynchronous motor which makes it the optimum choice across many businesses.

Features and Benefits

• Depending on the customer’s requirements, wall-mounting drives, built-in cabinet and floor-standing solutions are available with IP 21, IP 23, IP 54 and IP 55 protection degrees.
• Optimum monitoring of your process is given through the instant reaction, if the pump efficiency drops, this is all thanks to the embedded pump monitoring.
• Notification of critical operation points without having to have additional sensors.
• Featuring a process integration with pressure, flow and level control including compensation of flow losses.
• The stop innovative “Stop & Go” function saves you up to 60% of your energy when on standby mode.
• There is also a data logging and graphic display of the power consumption.
• The Altivar ATV630 by Schneider has an embedded web server interface which is based on the Ethernet network, giving you process monitoring with your daily work tools.
• Local and remote access to energy use and customized dashboards means your energy is visible anywhere, any time, on PC, tablet or smartphone.
• This series is super user-friendly, offering you easy integration due to the standardized FDT/DTM and ODVA technology as well as being supported by predefined Unity Pro libraries.
• It is easily accessible via a PC, tablet or smartphone and has a secure connection via “Cyber-secure Ethernet”.
• Featuring a sophisticated service concept with its modular design which provides easy spare parts logistics.
• Optimized maintenance costs due to dynamic maintenance schedule, with integrated monitoring of individual components.
• Super simple exchange of power modules and fans.
• Quick assistance with dynamic QR codes and Customer Care App.

What is the “Stop & Go” function on the Altivar Process Drive?

This special feature gives a huge reduction on the energy that is consumed with the motor is on standby mode and the power supply of the drive is switched on. This function can save you up to 60% on energy use. When the “Stop & Go” function is in action the machine will switch off the power section (rectifier, DC-Bus), the fans and backlight of the graphic keyboard. This energy saving mode is automatically switched on when the machine is not in use or running, this is known through the communication network and can be adjustable through the parameter.

What else is supplied with this Inverter Drive?

This Inverter Drive is also supplied with a Graphic Display Terminal which can be connected and mounted on the front of your inverter. You could also connect and mount on an enclosure door using remote mounting accessories. The display terminal can be connected to a PC to exchange files via a Mini USB|USB connection as well as giving you connection to several drives in the multidrop mode. Please refer to the datasheet for more information regarding the feature.

Standards

The Green Premium product label, Schneider Electric’s eco-mark, indicates your compliance with international environmental standards such as RoHS-2 according to EU directive e 2002/95, REACH according to EU regulation 1907/2006 and IEC 62635: the end-of-life instructions comply with the latest recycling rules, 70% of the product components can be recycled.

Schneider Electric Variable Speed Drive, 380 to 480V AC Supply Voltage, Wall Mounting - Altivar Process ATV600 Series - ATV630U55N4

Is your AC motor constantly changing speed? Keep up with its pace using this variable speed drive from Schneider Electric. It lets you control the flow of power from your mains supply to your motor to meet your exact process needs. This helps to prevent wasted energy and boosts efficiency. By smoothing out the frequency and voltage of your power supply, the unit also reduces the risk of equipment breakdowns and time-consuming troubleshooting. For versatility, you can use it with a wide supply voltage range between 380 and 480V AC.

• Broad operating temperature range without derating between -15°C and +50°C, for use in extreme settings
• Comes with one Ethernet and two Modbus serial communication ports to quickly hook up to your control system
• End-of-life optimised, so it minimises the amount of waste sent to landfill
• Status LEDs give you convenient visual diagnostics

Applications

• Food and beverage industry
• Wastewater management
• Oil and gas industry
• Mining and minerals processing

Can I use this variable speed drive in humid settings?

Yes, the device is IP21-rated, so it's protected against moisture as well as human touch and objects larger than 12mm.
