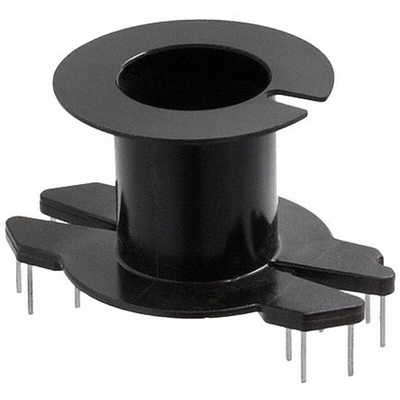

B65888N1012D001, EPCOS, RM 14 Coil Former for use with RM 14 Core, Каркас катушки

EPCOS B65888 RM 14 Coil Formers

RM 14 coil formers from EPCOS are constructed from black GFR thermosetting plastic, which meets IEC 60085:H standards. The B65888C1512T001 version is suitable for power applications and has a GFR polyterephthalate construction meeting IEC60085:F. Both materials meet the UL94 V-0 standard. B65888 series coil formers feature solderability and soldering heat resistance to IEC 60068-2-20. These coil formers have squared pins and are offered in 10-pin or 12-pin varieties

RM 14 coil formers are ideal for use in automatic placement machines, enabling inductive components to be produced at a lower cost. A slightly conical and highly accurate internal diameter enables a snug fit on the winding tools and prevents slipping. Even when the winding speed is high, a lengthened wire catching nose ensures that all wire is correctly wound into the wire guidance slots. These coil formers feature a pin-less flange that also ensures a more accurate arrangement of the coil formers for wrapping and winding. EPCOS RM coil formers are also suitable for manual winding.
