RS PRO Momentary Foot Switch - Cast Iron Case Material, SP-CO, 20 A Contact Current, 125V Contact Voltage, Ножной выключатель

RS PRO Momentary Foot Switch – Cast Iron Material, SP-CO, 20 A Contact Current, 125 V, 250 V Contact Voltage

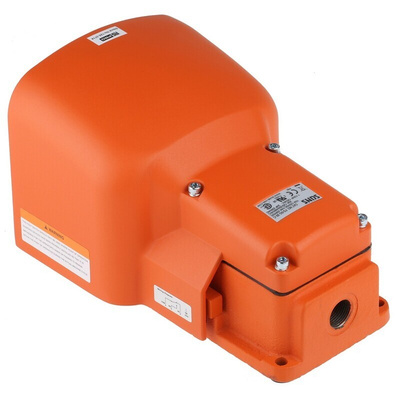

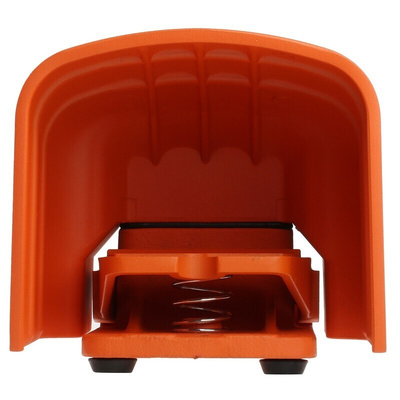

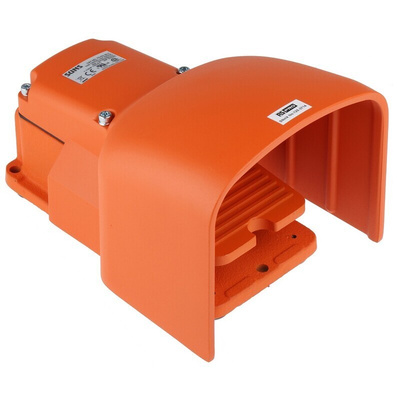

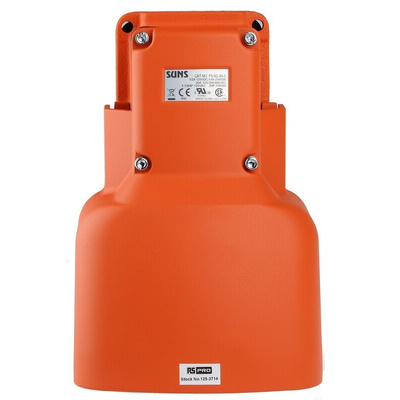

This RS PRO foot switch is a robust, heavy-duty momentary switch that allows you to safely operate your equipment by applying pressure on the pedal. The switch has a housing and treadle made from cast iron to ensure it's strong and durable.
It also features a strong guard cover manufactured from cast iron, but Constructed from cast aluminum within it for strength and durability. The base has anti-skid rubber feet and holes for rigid mounting to make sure the pedal stays firmly in place once installed. A slow action break allows you to start your equipment smoothly.
The product has an Ingress Protection (IP) rating of IP68, which means it will resist dust, dirt and low-pressure water jets from any direction. It also meets American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) standards, so you can be sure the risk of a discharge is reduced to a minimum.

Features and Benefits

• Cast iron material, Constructed from cast aluminum within
• Orange colour
• SP-CO (single pole, change over) contact configuration
• Contact current rating of 20 A
• Contact voltage rating of 125 V, 250 V AC
• Dimensions of 157 (length) x 228 (width) x 140 mm (height)
• Guard cover
• IP (Ingress Protection) rating of IP68
• Meets CCC, CE, CSA, cULus, cULus recognised standards
• Heavy-duty switch environment
• Momentary switch operation

RS PRO Datasheet
