RS PRO Light Duty Momentary Foot Switch - Glass Fibre Reinforced Plastic Case Material, SP-CO, 15 A Contact Current,, Ножной выключатель

RS PRO Momentary Foot Switch – Glass Fibre Reinforced Plastic Case Material, SP-CO, 15 A Contact Current, 250 V Contact

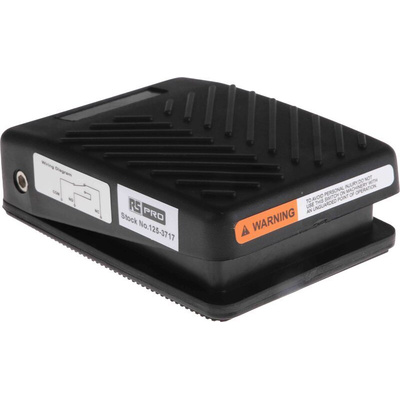

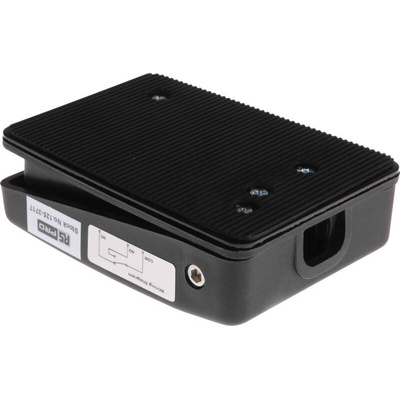

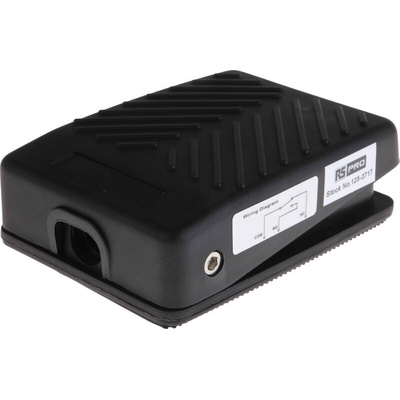

Need a foot switch to control a circuit? This one from RS PRO features a robust case made of plastic reinforced with glass fibre. This makes it a well insulated, strong and durable component.


The switch is activated by applying pressure on the pedal. It supplies power only when you press the pedal and stops when you remove your foot, giving you greater control. There's minimal risk of electric shock, as the contacts are galvanically separated. The part is also touch-proof and protected against objects larger than 12 mm, thanks to its IP20 rating.


This product complies with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) standards for electrostatic discharge (ESD). This means the risk of harmful discharge is minimised. It also has a number of international safety certifications to guarantee safety.

Features and Benefits

• Glass fibre reinforced plastic case material


• Black colour


• SP-CO (single pole, change over) contact configuration


• Contact current rating of 15 A


• Contact voltage rating of 250 V AC


• Dimensions of 75 mm (length) x 100 mm (width) x 33 mm (height)


• IP20 rated


• Meets CCC, CE, CSA, cULus and cULus recognised standards


• Momentary switch operation

RS PRO Datasheet
