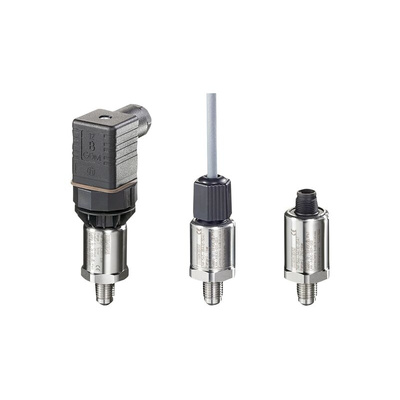

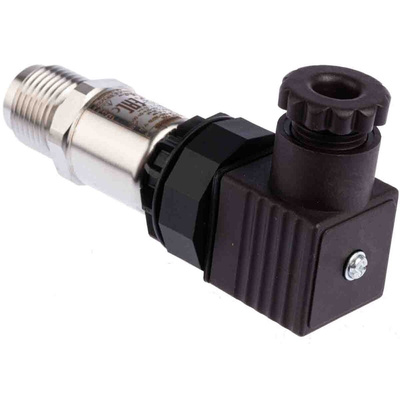

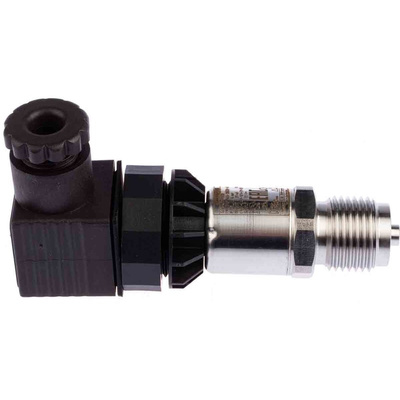

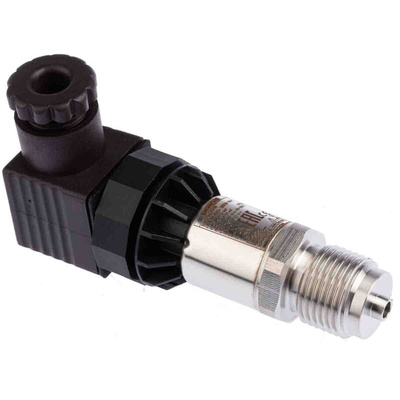

7MF1565-3BG00-1AA1, Siemens Pressure Sensor, 0bar Min, 6bar Max, Analogue Output, Relative Reading, Датчик давления

Siemens Pressure Sensor, G1/2 Process Connection, 20mA Maximum Current - SITRANS P200 Series - 7MF1565-3BG00-1AA1

To keep your system on an even keel, take accurate readings with this pressure sensor from Siemens. It delivers dependable results with a typical error rate of just 0.25% and a rapid response time of less than 5ms. As it's compatible with gas, liquid and vapour, as well as aggressive and non-aggressive media, this is a versatile option. You can use it in diverse applications such as heavy engineering, chemical production and water services. Because it has stainless steel housing, the unit withstands use in harsh settings where chemicals, impacts and mechanical stress are common.

Features & Benefits

• Light 90g weight keeps strain on your setup minimal
• Works with supply voltages between 7 and 33V DC for broad compatibility
• Measures between 0 and 6 bar, so it's ideal for low-pressure systems

Can this component function in extreme industrial environments?

Yes. The sensor does its job reliably in a temperature range between -25°C and +85°C, so it's ideal for challenging industrial conditions.

Is the unit protected from contamination?

An IP67 rating means you can trust it in contaminated settings as it's completely dust-tight and withstands temporary immersion in water to a depth of one metre.

Datasheet

Instruction Sheet - 7MF1565-3BG00-1AA1
