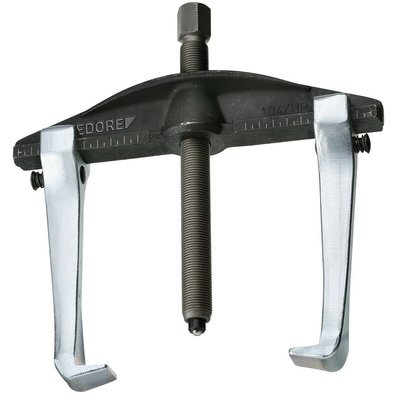

1.04/HP1A-B, Gedore Lever Press Bearing Puller, 130 (External) mm, 170 (Internal) mm Capacity

Gedore Universal Puller High-Power Rigid Legs With Leg Brake

Gedore Universal puller high-power 2-arm pattern, rigid legs with leg brake. The legs clamp automatically when under tension, the leg brake prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button. By reversing the legs, this tool can be used as an internal or external puller.

Features and Benefits

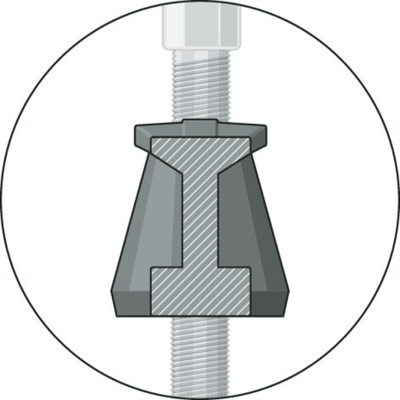

Cross-beam especially hardened and tempered allows safe application of high pulling forces and doubles the tensile force capability
Rigid legs forged from one piece
Leg brake prevents unintentional leg slipping, the leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when high pulling forces are required

GEDORE Bearing Puller, 2 Arms, 100mm Jaw Reach - 1.04/HP Series - 1.04/HP1A-B

Finding it tricky to remove pulleys, wheels and bearings from shafts? Gear up for the dismount with this puller from GEDORE. Adjustable legs with hooked ends get to grips with your components, while the screw spindle makes light work of levering. This means you'll have no trouble getting stubborn mechanical parts to budge. The drop-forged construction with hardened crossbeam support and one-piece pulling legs ensure this tough cookie stands up to high pulling forces.

Features & Benefits

• Capacity of 130mm and jaw reach of 100mm for working on larger parts
• Brakes stop the legs from slipping as you pull

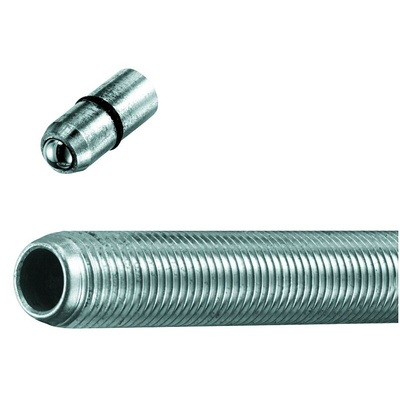

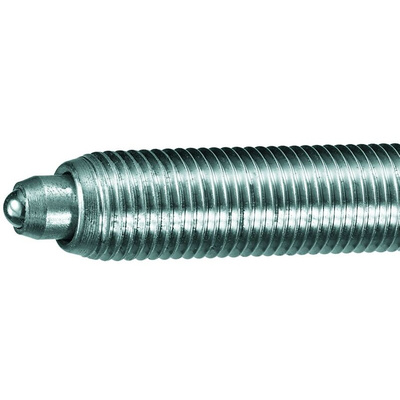

• Nitro-carburising on spindle surface boosts hardness

Applications

• Plant machines
• Automotive manufacturing
• Milling equipment

Can I use this device as an internal puller?

Yes. By turning the legs around to reposition the hooks, you can use it as an internal puller for versatility.
