9PX3000IRT3U, Eaton 100 → 276 (With Derating) V, 176 → 276 (Without Derating) V Input Rack Mount, Stand Alone, ИБП

Eaton 9PX UPS Uninterruptible Power Supplies

In the event of a power surge or power failure, an Uninterruptible Power Supply (UPS) is a vital piece of safety equipment. They provide you with crucial battery backup time and ensure all your sensitive IT, network and computer systems are kept safe and operational.

The Eaton 9PX Series of UPS systems are designed to deliver first-class energy-efficient power protection for data centres, IT, Networking and Infrastructure. With energy star qualification the 9PX can operate at the highest efficiency levels and still reduce energy and cooling costs. Featuring double conversion technology, the Eaton 9PX series can constantly monitor power and regulate voltage and frequency levels. The Eaton 9PX UPS’s are the ideal solution for both rack-mounting or standalone installations.

Features and Benefits

• Easy to install and operate
• 9PX is the first UPS system in its class to provide Unity power factor (VA=W)
• Constantly monitors power conditions and regulates voltage and frequency
• Long battery life with the Eaton ABM battery management technology utilizing 3 stages charging extending battery life up to 50%
• Additional extended run time can be achieved with up to 4 external hot-swap battery modules
• Multi-lingual graphical LCD provides clear information on the UPS's status and measurements
• Available in RT2U for rack mounting or RT3U for tower mounting
• Available in 1000VA to 3000VA power ratings.
• Rack-mount or tower mount
• Supplied with a rail rack kit

Applications

You will find Uninterruptible Power Supplies in a wide range of applications where the protection of sensitive IT and Networking equipment is crucial. UPS’s are vital in providing extra back up time allowing shutdown software to start or generators to kick in. Uninterruptable power supplies ensure mission-critical data loss can be prevented. Some of the most common areas are

• Data centres
• IT and Networking
• Data Storage & Telecoms
• Industrial and Medical Infrastructure
• Server rooms

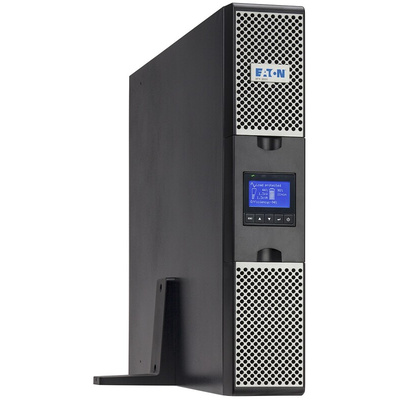

Eaton Uninterruptible Power Supply, 240 V Output, 3 kW - 9PX Series - 9PX3000IRT3U

Eaton's rack-mounted tower UPS (uninterruptible power supply) gives you extra backup time during power outages until shut-down software can start or generators kick in. It's rated at 3000 VA (volt-ampere) and gives you four minutes' backup time at 2500 W. This product features double-conversation technology to constantly monitor power conditions and regulates voltage and frequency accordingly. It supports remote communication and monitoring via a mini terminal block and USB (universal serial bus) connections.

• Compact dimensions of 130 (length) x 440 (width) x 485 mm (depth) for installation in tight spaces
• Deep discharge protection prevents damage to the battery from over-discharge
• Energy star qualification means it can operate at high efficiency levels while reducing energy and cooling consumption
• Eaton advanced battery management (ABM) technology supports three-stage charging, which extends battery life by up to 50%
• Rail rack kit supplied, so it's ready to mount

What's deep discharge protection?

When a battery is discharged too far it becomes damaged and an irreversible loss of capacity occurs. Deep discharging can also cause premature failure of the battery. Deep discharge protection protects the batteries by disabling the output before this happens.

Contains SVHC - Lead - CAS No. 7439-92-1

9PX UPS Datasheet

9PX UPS Instruction Sheet

9PX UPS Brochure

9PX UPS Manual

Batterieerweiterungen
