9PX3000IRT2U, Eaton 100 → 276 (With Derating) V, 176 → 276 (Without Derating) V Input Rack Mount, Stand Alone, ИБП

Eaton 9PX UPS Uninterruptible Power Supplies

In the event of a power surge or power failure, an Uninterruptible Power Supply (UPS) is a vital piece of safety equipment. They provide you with crucial battery backup time and ensure all your sensitive IT, network and computer systems are kept safe and operational.

The Eaton 9PX Series of UPS systems are designed to deliver first-class energy-efficient power protection for data centres, IT, Networking and Infrastructure. With energy star qualification the 9PX can operate at the highest efficiency levels and still reduce energy and cooling costs. Featuring double conversion technology, the Eaton 9PX series can constantly monitor power and regulate voltage and frequency levels. The Eaton 9PX UPS’s are the ideal solution for both rack-mounting or standalone installations.

Features and Benefits

• Easy to install and operate
• 9PX is the first UPS system in its class to provide Unity power factor (VA=W)
• Constantly monitors power conditions and regulates voltage and frequency
• Long battery life with the Eaton ABM battery management technology utilizing 3 stages charging extending battery life up to 50%
• Additional extended run time can be achieved with up to 4 external hot-swap battery modules
• Multi-lingual graphical LCD provides clear information on the UPS's status and measurements
• Available in RT2U for rack mounting or RT3U for tower mounting
• Available in 1000VA to 3000VA power ratings.
• Rack-mount or tower mount
• Supplied with a rail rack kit

Applications

You will find Uninterruptible Power Supplies in a wide range of applications where the protection of sensitive IT and Networking equipment is crucial. UPS’s are vital in providing extra back up time allowing shutdown software to start or generators to kick in. Uninterruptable power supplies ensure mission-critical data loss can be prevented. Some of the most common areas are

• Data centres
• IT and Networking
• Data Storage & Telecoms
• Industrial and Medical Infrastructure
• Server rooms

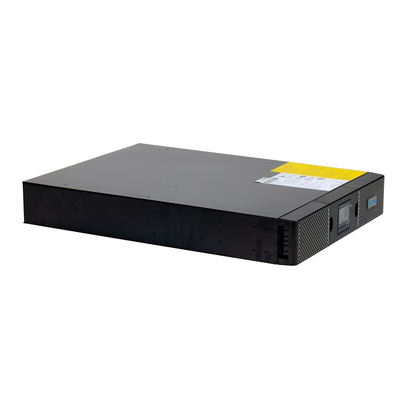

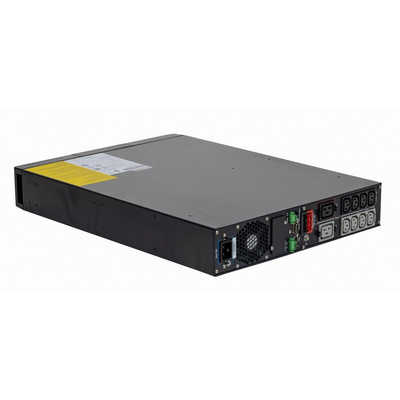

Eaton Uninterruptible Power Supply, 240 V Output, 3 kW - 9PX Series - 9PX3000IRT2U

This uninterruptible power supply (UPS) from Eaton protects your sensitive electronic equipment from the most common power problems. That includes power failures, sags and surges as well as line noise, frequency variations and harmonic distortion. The unit features Eaton's innovative advanced battery management (ABM) technology, which uses three stages of charging to extend battery life by up to 50%. This compact device is designed to be rack-mounted and takes up just two rack-mount units. It comes complete with a rail rack kit.

• Compact dimensions of 86.5 (height) x 485 (width) x 440 mm (depth)
• Input voltage of 100 to 276 V (derated), 176 to 276 V (non-derated)
• Two 16 A IEC C19 outlets and eight 10 A IEC C13 outlets
• Online operation ensures a smooth output voltage
• Deep discharge protection prevents the battery from discharging too far for a longer battery life

What does online operation mean?

A UPS with an online configuration uses technology that eliminates switch-over time, so there are no dips or peaks in the output voltage.

What's the benefit of Eaton's double-conversion technology?

All components in Eaton's 9PX series feature double conversion technology. This enables the UPS to constantly monitor power and regulate voltage and frequency levels.

Contains SVHC - Lead - CAS No. 7439-92-1
