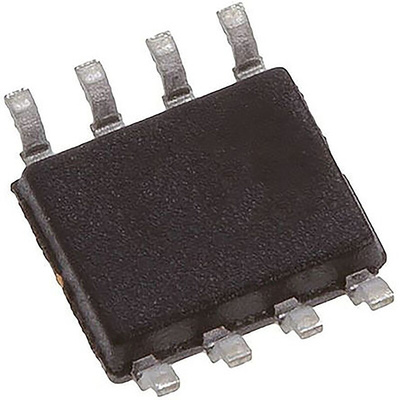

Infineon 1Mbit Serial-2 Wire, Serial-I2C FRAM Memory 8-Pin SOIC, FM24V10-G

FRAM, Cypress Semiconductor

Ferroelectric Random Access Memory (F-RAM) is energy-efficient and it has the highest-reliability of the non-volatile RAMs for both serial and parallel interfaces. Parts with suffix A are designed for automotive applications and are AEC-Q100 qualified.

Nonvolatile Ferroelectric RAM Memory
Fast write speed
High endurance
Low power consumption

1-Mbit ferroelectric random access memory (F-RAM) logically organized as 128K x 8
High-endurance 100 trillion (1014) read/writes
151-year data retention
NoDelay™ writes
Advanced high-reliability ferroelectric process
Fast two-wire Serial interface (I2C)
Up to 3.4-MHz frequency
Direct hardware replacement for serial (I2C) EEPROM
Supports legacy timings for 100 kHz and 400 kHz
Device ID and Serial Number
Manufacturer ID and Product ID
Unique Serial Number (FM24VN10)
Low power consumption
175 μA active current at 100 kHz
90 μA (typ) standby current
5 μA (typ) sleep mode current
Low-voltage operation: VDD = 2.0 V to 3.6 V
Industrial temperature: –40 °C to +85 °C
8-pin small outline integrated circuit (SOIC) package

FRAM (Ferroelectric RAM)

FRAM (Ferroelectric Random Access Memory) is a non-volatile memory that uses ferroelectric film as a capacitor for storing data. Possessing characteristics of both ROM and RAM devices, F-RAM features high-speed access, high endurance in write mode, low power consumption, non-volatility, and excellent tamper resistance. It is therefore ideal memory for use in smart cards which need high security and low power consumption, as well as cellular phones and other devices.

FM24V10 Datasheet
