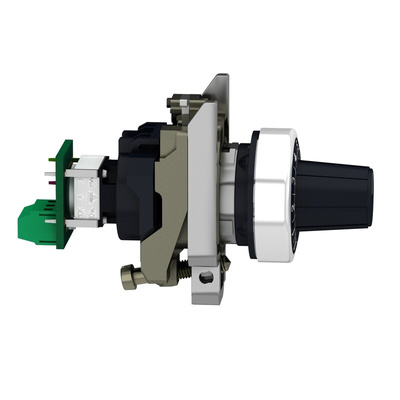

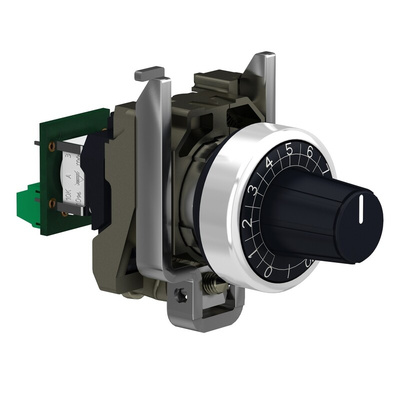

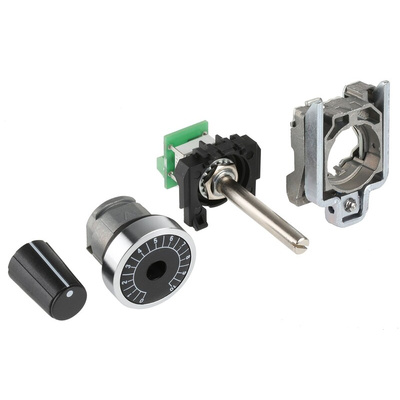

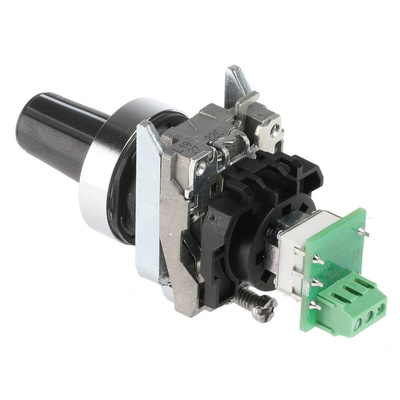

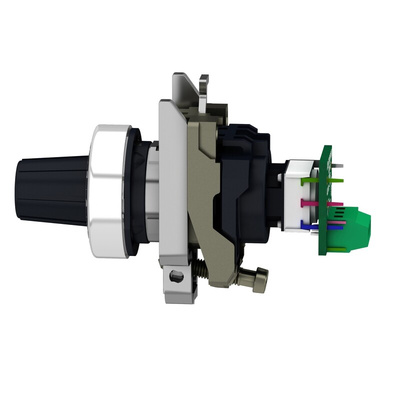

Schneider Electric 10kΩ Rotary Potentiometer 1-Gang Panel Mount, XB4BD912R10K, Потенциометр

Schneider Electric Potentiometer - Harmony XB4 Range

Providing linear mode precision in a familiar package size that fits the Harmony XB4 range of products are Schneider Electrics Range of panel mount potentiometers. The Harmony XB4 range of potentiometers is a type of variable resistor that enables users to regulate and change current flowing through a circuit.

Features & Benefits

• Commonly referred to as "pots" or "potmeters"

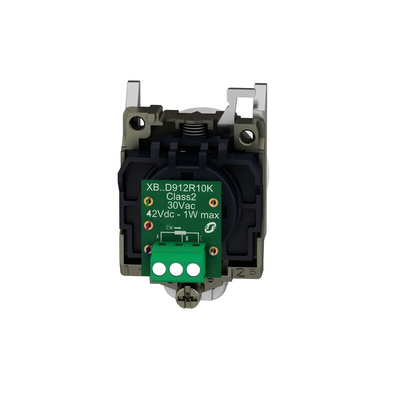

• Screw terminals


• 22mm panel cut-out


• The bezels are comprised of chromium-plated metal


• Featuring an IP rating of IP66 - this means that each potentiometer within this range is totally dust-tight, no dust can get into the electronics or the shaft this IP rating also means that the item has protection against direct high-pressure jets


• Compatible with a Ø 6mm shaft


• Complete and ready to use


• Mechanically durable for up to 50000 cycles

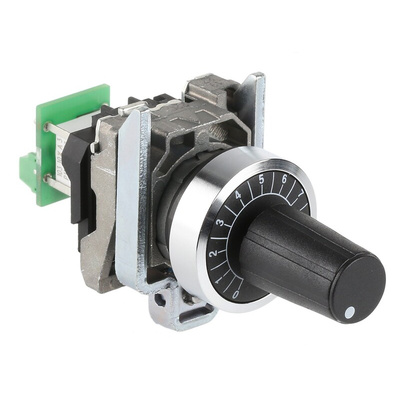

• Each potentiometer features a knurled knob with white markings


• Standards - EN/IEC 60947-1, UL 508 and CSA C22.2 No 14


• Comprised of cermet

How do Potentiometers work?

A potentiometer works through the two terminals that they feature, they are fixed to a resistive element or what we may refer to as a track. A third terminal is connected to the wiper, which is a sliding contact. As the wiper moves along the track, the resistance changes and the current that is flowing through the circuit changes.

Schneider Electric Potentiometer, Plug-In or Screw Termination, IP69K Rating - XB4 Series - XB4BD912R10K

Need a precise way to control devices in harsh environments? Get your hands on this potentiometer from Schneider Electric. A simple turn of its front-facing dial lets you manage connected equipment like drivers and inverters by adjusting electrical resistance levels up to 10kΩ. You can trust it's robust to suit tough settings, as it's rated IP69K. This means it's dustproof and waterproof against high-temperature, high-pressure jets of water. Combined with the unit's impressive impact resistance, this means you're getting a safety stalwart that can handle demanding industrial conditions.

Features & Benefits

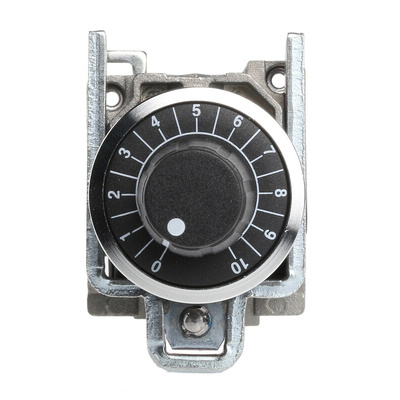

• White markings on the black dial are highly visible
• Hardwearing chromium-plated metal bezel helps fend off knocks and scrapes
• Internal conversion resistor delivers precision of ±10%, assuring you accurate control
• Knurled knob helps prevent slippage as you turn it

Applications

• Industrial equipment
• Robotics systems
• Electrical engineering

What's the benefit of this device's TH protective treatment?

The TH protective treatment on this potentiometer is designed to prevent corrosion and electrical failure in atmospheres that are especially hot and humid. It shields against condensation and dripping water, as well as reducing the risk of fungi developing.

Datasheet

Product Environmental Profile

Instruction Sheet - XB4BD912R10K
