CY8CKIT-002, Infineon Cypress Semiconductor

PSoC® MiniProg3 Program and Debug Kit

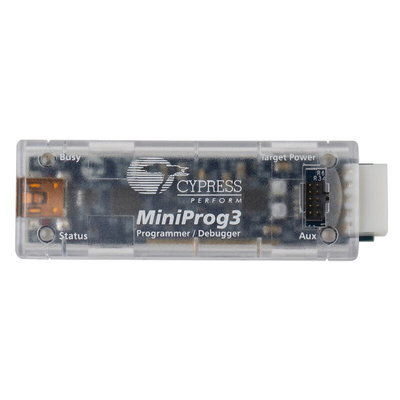

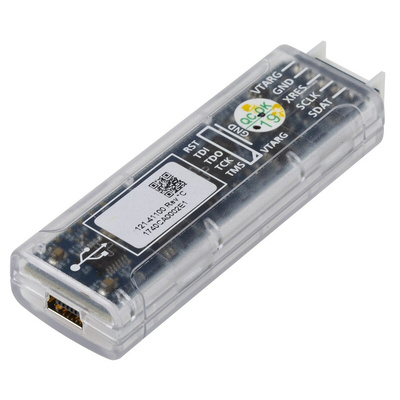

Cypress Semiconductor CY8CKIT-002 PSoC® MiniProg3 Program and Debug Kit is a low-cost aid to help developers who want to build their own systems around Cypress 8- and 32-bit PSoC devices. The kit is a programmer for PSoC 1, PSoC 3, PSoC 4 and PSoC 5LP architectures and a debug tool for PSoC 3, PSoC 4 and PSoC 5LP architectures.

MiniProg3 provides the flexibility to work with different programming and debugging interfaces, such as JTAG, SWD, ISSP and I²C. When programming, MiniProg3 enables communication with target devices using I/O voltage levels from 1.5V to 5.5V. In addition, MiniProg3 can supply power to a simple target board at one of four voltage levels: 1.8V, 2.5V, 3.3V, or 5V.

Kit Contents

- MiniProg3 programmer/debugger

- 10-pin ribbon cable

- USB Standard-A to Mini-B cable

- Quick Start Guide

Applications

- Embedded Design & Development

Note

Requires a PC running Microsoft Windows XP, Vista or 7.
