4D Systems gen4-uLCD-32DT TFT LCD Colour Display / Touch Screen, 3.2in, 240 x 320pixels, Дисплей

4D Systems LCD Display

The 4D Systems gen4 series 3.2in LCD offers a compact and easy to integrate display solution. This 240 x 320-pixel variant features 4-wire resistive touch for applications requiring a human-machine interface. The design of the gen4 series makes it simple to integrate into the final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintaining a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. The 4D systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability, powers it. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 different development environments.

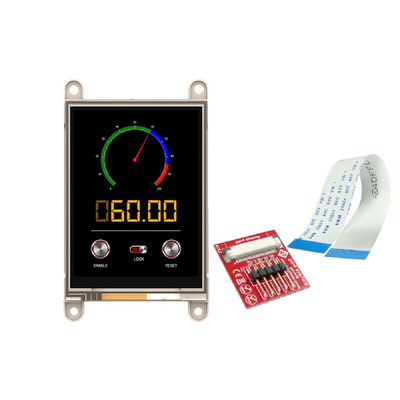

Kit Contents
1 x 2.4in gen4-uLCD-24DT LCD display module
1 x gen4-IB interface board
1 x 150mm FFC Cable

Features and Benefits

TFT transmissive display
16 GPIO – Includes 4 configurable analogue outputs
3 x I2C channels
3 x SPI channels
30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging
32KB of user RAM
4.0V to 5.5V operation
6 banks of 32KB Flash memory for user application code and data
Compact – module's width of 95.7mm, depth of 57.1mm and height of 7.5mm (including mounting tabs)
Dedicated PWM audio pin
RGB 65k true to life colours
Supports all Windows fonts
Up to 10 GPIO for pulse output
Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels)
Up to 6 GPIO can be used as pin counters
Up to 6 GPIO for PWM

Certifications

CE certified
REACH compliant

gen4-uLCD-32D Series Datasheet

DIABLO16 Processor Datasheet
