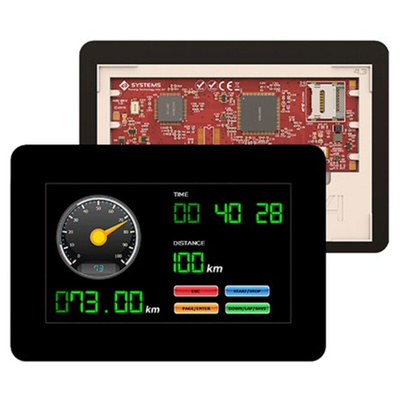

4D Systems gen4-uLCD-43DCT-CLB-AR TFT LCD Colour Display / Touch Screen, 4.3in, 480 x 272pixels, Дисплей

4D Systems LCD Display

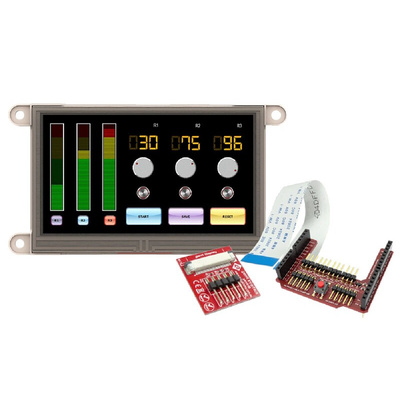

The 4D Systems gen4 series LCD offers a compact and easy to integrate display solution. This 4.3in, 480 x 272 pixels variant features 4-wire capacitive touch with Arduino for applications requiring a human-machine interface. The design of the gen4 series makes it simple to integrate into the final product. Its display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, eliminating the need for wiring. If space is at a premium, the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintaining a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. The 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability powers it. This display is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of four different development environments.

Features and Benefits

RGB 65k true to life colours
Compact - Module dimensions are 127.6mm x 69.3mm x 7.8mm (including mounting tabs)
6 banks of 32KB Flash memory for user application code and data
32KB user RAM
16 GPIO including 4 configurable analogue outputs
3 x I2C channels
3 x SPI channels
Up to 6 GPIO can be used as pin counters
Up to 6 GPIO for PWM
Up to 10 GPIO for pulse output
Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels)
30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging
Dedicated PWM audio pin
Supports all the Windows fonts
Operating voltage ranging between 4.0V and 5.5V

Certifications

CE certified

gen4-uLCD-43D Series Datasheet

DIABLO16 Processor Datasheet
