RS PRO 24 Port ST Multimode Fibre Optic Patch Panel With 24 Ports Populated, 1U, Коммутационная панель

RS PRO 24 Port ST Multi-mode Fibre Optic Patch Panel With 24 Ports Populated, 1U

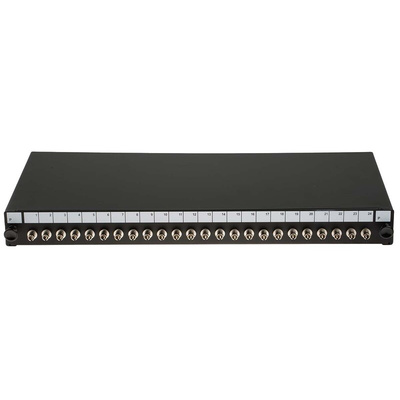

The RS PRO fibre optic patch panel makes fibre optic systems more accessible by separating network equipment from the hardwiring. It’s supplied with 24 ports containing fibre optic adapters. These are individually labelled and suitable for ST (straight tip) connectors.

Patch cables (shorter cables) can be plugged into the front of the distribution panel and connected with longer wires at the back of the device. The 1U unit is 44.45 mm in height and designed to fit 19-inch racking systems. It features a removable rear plate for easy installation of cables and four standard cable entry points. These accept loose tube, tight buffer, pre-terminated and steel tape armoured cable.

This component has an Ingress Protection rating of IP20 so it's capable of withstanding everyday handling and dust. It meets UL (Underwriters Laboratories) approvals and the European Union’s key chemical control regulations. It's multi-mode and handy for business and telecommunications applications.

Features and Benefits

• Fibre optic patch panel
• ST connector
• 24 ports
• 45° open working angle
• Easy installation of cables
• Fits standard 19-inch racks

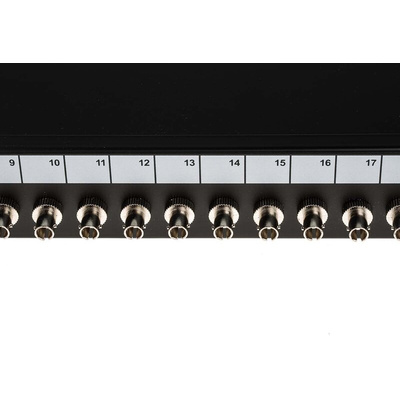

• Individually labelled ports
• Dimensions of 482 mm x 205 mm x 44.4 mm
• IP20 rating
• REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals manufactured in or imported into the European Union) SvHC (Substances of Very High Concern) approved
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
