XCKN2118G11, Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 10A

Telemecanique Limit Switches

Introducing Telemecanique XCKN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKN series limit switches are a compact design with a wide variety of actuator heads available. The XCKN series is a monolithic plastic limit switch dedicated to repetitive action.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

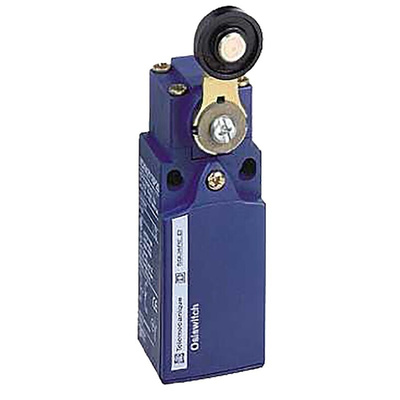

Telemecanique XCKN2118G11 Limit Switch

• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing plastic material
• The operator type is a spring return roller thermoplastic
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum force for tripping 0.1 N.m
• Dimensions – W30mm x H108mm x D44.5mm
