XCKN2118P20, Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 10A

Telemecanique Limit Switches

Introducing Telemecanique XCKN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKN series limit switches are a compact design with a wide variety of actuator heads available. The XCKN series is a monolithic plastic limit switch dedicated to repetitive action.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

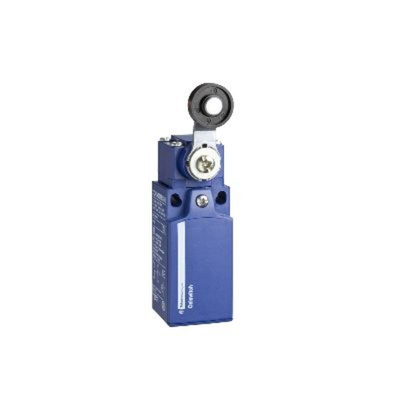

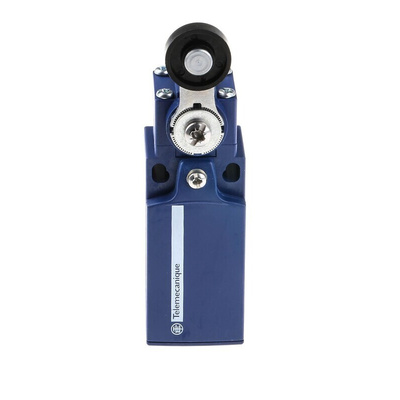

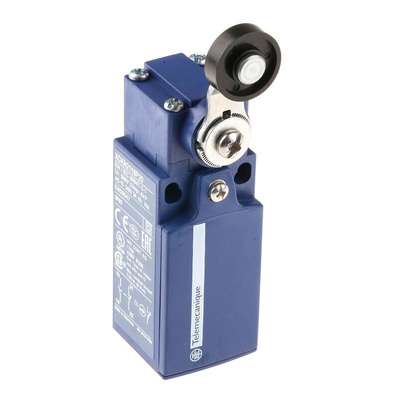

Telemecanique Sensors Limit Switch, Snap Action, M20 Connection - OsiSense XC Series - XCKN2118P20

Get precision control over your machinery with this limit switch from Telemecanique Sensors. It gauges the position of machine parts, as well as the presence or absence of objects, and turns circuits on or off accordingly. As this is a snap action-style switch that activates even at low actuator speeds, it's a versatile choice. Action is triggered by a roller lever, making this the ideal pick for moving applications such as conveyor belts or cutting equipment.

Features & Benefits

• Plastic material resists corrosion in harsh settings
• Maximum actuation speed of 1.5m/s to support fast-paced applications
• Mechanical durability of 10 million cycles so it's built to last
• Suitable for harsh environments thanks to an operating temperature range between -40°C and +70°C
• Standard M20 connection makes installation quick and simple

Applications

• Automated manufacturing
• Distribution centres
• Packing plants

Is this limit switch waterproof?

Yes, it's rated IP65, meaning it's protected against low-pressure jets of water from all directions.

What's the minimum torque needed to trip the switch?

It has a minimum tripping torque of 0.1Nm, so it activates even when there's minimal force.
