XCMN2115L1, Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 6A

Telemecanique Limit Switches

Introducing Telemecanique XCMN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle and predominantly used as part of a control system within industrial applications such as those listed before. This series is made up of monolithic limit switches that are dedicated to repetitive action.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.

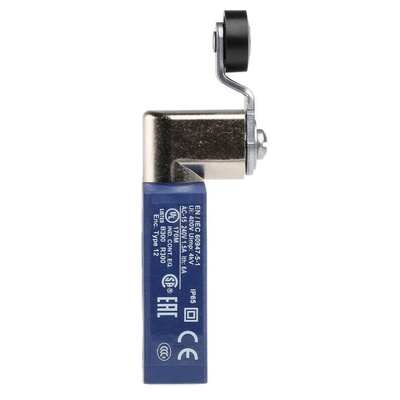

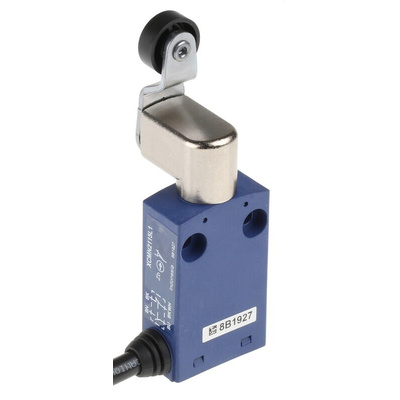

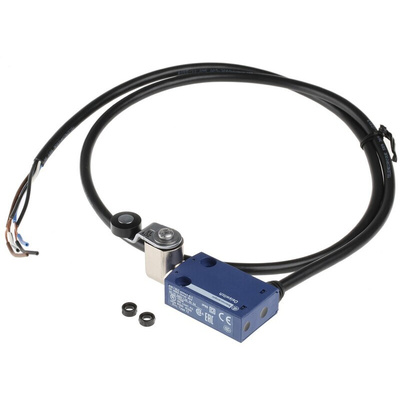

Telemecanique XCMN2115L1 Limit Switch

• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing plastic material
• The operator type is a spring return roller lever thermoplastic
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum force for tripping is 0.1 N
• Dimensions - W30mm x H94mm x D16mm
