XD522-DP-PAIR-XX, Adder DisplayPort over CATx KVM Extender

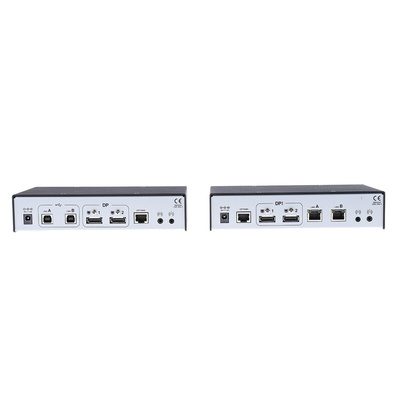

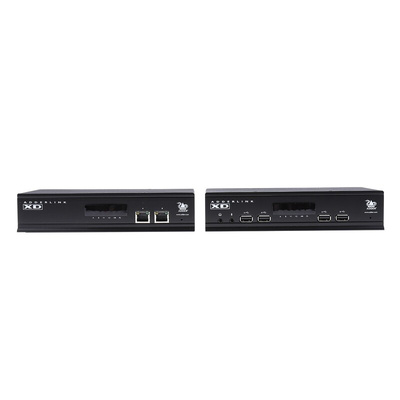

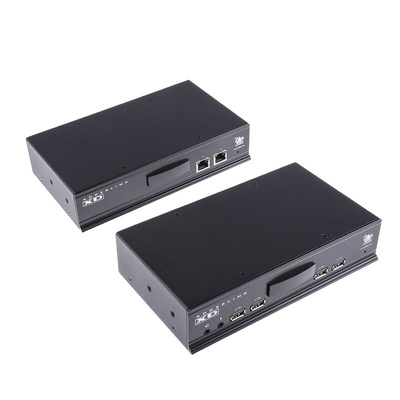

AdderLink XD522 KVM Extender

AdderLink XD522 is a high performance KVM (Keyboard, Video, Mouse) extender. Enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station

4 k at 30 Hz DisplayPort extender
Single High Dynamic Range monitor, 2560 x 1600 at 60 Hz 10 bit per colour
100 m extension distance for two 1920 x 1200 screens
150 m extension distance for a single 1920 x 1080 screen
USB 2.0 Hi-Speed for mass storage devices plus: Keyboard, mouse tablet and touch
Supports DisplayPort Audio, S/PDIF and analogue audio
Single CATx Cable
Plug and play
EDID management

AdderLink X Series – KVM extension for high density environments and Cat 6 installations,A modular, scaleable extender solution offering flexible control over advanced cable systems. X Series modules can be used in a stand-alone environment or are rack mountable (up to 16 units in a 2U high enclosure) for a compact solution. ,Offering functionality such as digital audio, RS232, skew control and dual video signal support, X Series units provide the solution to a wide range of KVM extension applications.
