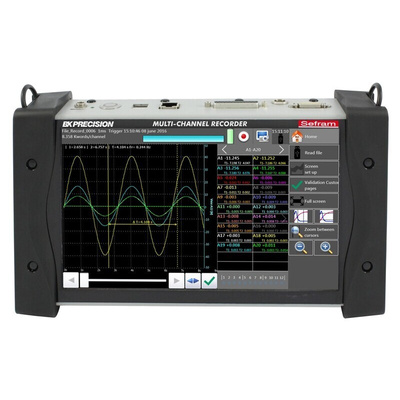

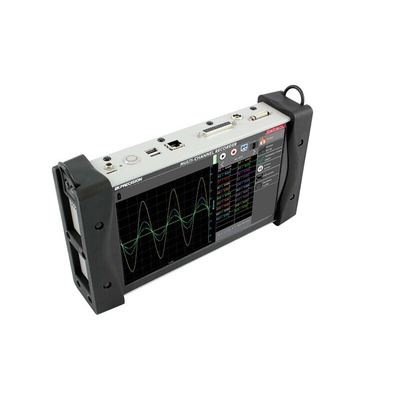

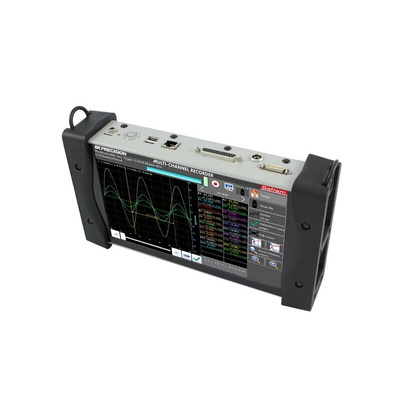

DAS240 and DAS240BAT Multi-Channel Handheld Recorder

The new DAS240 and DAS240BAT (15 hour internal battery) recorders have been designed to measure all parameters you can find in a process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. You can view directly the results of measurements (graphs, numerical values) and memorize your results in the recorder or in a USB memory stick. The data transfer, data processing, remote setup can be done with the licence free DasLab software.
Choice:
DAS240 - RS Stock No. 125-9516
DAS240BAT - RS Stock No. 125-9517

Main Features of the DAS240 and DAS240BAT

• 20 to 200 analogue channels
• Input: voltage, thermocouple, Pt100-1000, current (with optional shunt), resistance
• Voltage: from 1mV to 200V (±100V)
• Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires)
• 16 Bit vertical resolution
• Max sampling rate: 1ms (1kHz)
• 12 logical channels
• 4 alarms (output)
• 4 logical function input with counter & frequency meter capability
• 10 inch colour TFT panoramic touch screen display
• Internal hard drive: 32 GB
• Interfaces: 2xUSB, Ethernet, Wifi (option)
• Lithium-ion battery (factory option): 15h autonomy (DAS240BAT RS 125-9517)
• DasLab software (licence free)
• MODBUS TCP (slave): Click here to get more details about this function
• Safety: IEC61010 CAT I 100V
• Application note: Remote control of the DAS240 with a tablet and VNC

Multiple Applications

The DAS240 recorder is a general purpose recorder for process applications:

• Multi channel temperature monitoring and recording
• 0 to 10 V sensors monitoring and recording
• Voltage measurements
• Pulse counting
• 4 to 20 mA measurement and monitoring (with optional shunt)

Options

1259518 - 20 Channel board for DAS240 and DAS240BAT
2320453 - WiFi option
7918071 - External 16 isolated logical channel adapter
1259523 - Special cord for logic inputs (banana)
1259520 - Carrying case for DAS220 and DAS240
2320454 - 10 pieces pack connecting cord with female banana connectors
1259522 - Shunt 50 ohms for DAS220 or DAS240
2320455 - Thermocouple adapter for DAS240 only

Supplied with
type":"Supplied with",

Included: main adaptor 100/240V, manual (CD-ROM), 1 male connector with 25 pins male and cover, 1 cable (70cm) for measurement module connection, 1 measurement module (20 channels) with connectors, a stylus, a soft wipe, a screwdriver
