Microchip Curiosity PIC24F Development Board DM240004

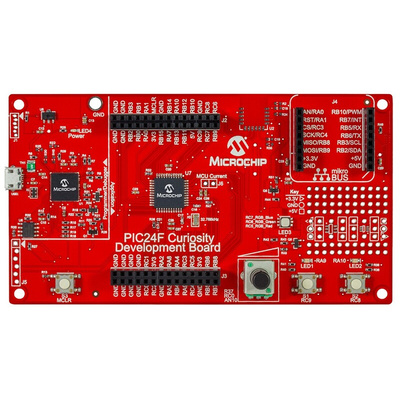

PIC24FJ128GA204 Curiosity Board

The PIC24FJ128GA204 Curiosity Development Board is a 16-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. The PIC24 featured has an integrated cryptographic engine.

• 32MHz PIC24FJ128GA204 16-bit XLP microcontroller with 128KB Flash memory, 8KB RAM
• On-chip hardware Cryptographic engine for data encryption/decryption and authentication
• PICkit™ On-Board (PKOB) circuit provides basic programming/debugging functionality
• MCP1703 +3.3V voltage regulator
• MCLR Reset pushbutton
• 2 x User pushbuttons
• 2 x User LEDs
• User RGB LED
• User10k potentiometer for analogue input
• 32.768kHz crystal
• Headers for access to GPIO pins
• Small prototyping area
• Footprint for optional BM71 Bluetooth LE radio module
• mikroBUS socket for expansion with Click modules
• Powered from PKOB microUSB connector
• Fully compatible with MPLAB Xpress, MPLAB X IDE, XC16 compiler and MPLAB Code Configurator
