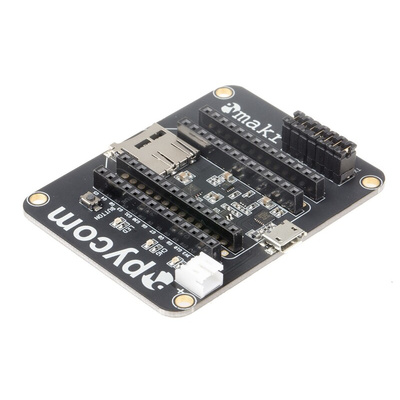

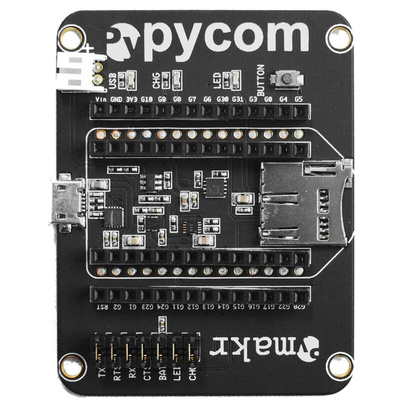

Pycom Universal Expansion Board Expansion Board
The Pycom expansion board 2.0 is compatible with the WiPy 2.0, LoPy, SiPy and FiPy. This board provides easy access to the pins on your Pycom board. This kit contains micro-USB connector for power and serial communications, a lithium polymer battery charger, reverse battery protection, micro-SD card slot, a button, and a user LED. It has a JST style battery connector.
Note
:
This expansion board is not compatible with WiPy 1.0.
Features and Benefits
USB and LiPo battery powered
2 different charging currents 100 mA and 450 mA
Power and charge status LEDs
Battery voltage monitoring via the WiPy ADC
Super easy code editor to write your Python scripts
FT234XD USB to serial converter
TPS2115A with reverse voltage protection
MicroSD card slot
Three female headers to easily plug in the Wipy 2.0, LoPy, SiPy or FiPy
One user LED and one user switch
Lots of jumpers to enable/disable features
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
