NPQH-L-G38-Q8-P10, Festo NPQH Series Elbow Threaded Adaptor, G 3/8 Male to Push In 8 mm, Threaded-to-Tube Connection Style, 578287, Переходник

Festo Threaded-To-Tube Elbow Adaptor, 8mm Push-in Connector, -0.95 to 20 Bar - NPQH-L-G38-Q8-P10

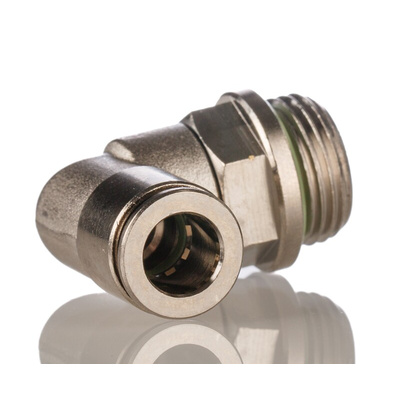

This elbow threaded adaptor from Festo is designed to allow for the smooth movement of compressed air and water from one point to another in a pneumatic system. It features a G3/8 male threaded connection on one end and an 8mm tube connection on the other for ease of connecting threaded components to tubes. As the tube end features a push-in fitting, you can easily insert it into a port without the need for specialist tools. A wide operating temperature range of 0°C to +150°C makes this a suitable choice for use in demanding environments.

• Nickel-plated brass material is corrosion-resistant for use in harsh conditions
• Right-angle design for installation in tight or awkward spaces
• Flexible mounting position for ease of assembly
• Light weight of 36.7g for reduced strain on equipment
• Chemical-resistant for ease of cleaning in hygienic environments

Applications

• Gas plants
• Plumbing systems
• Water treatment facilities
• Kitchens

Can I use this adaptor for high-pressure applications?

Yes, thanks to its broad operating pressure range of -0.95 to 20 bar, it's suitable for use in both low-pressure and high-pressure applications.

Datasheet

NPQH-L-G38-Q8-P10 Specification Sheet
