NPQH-D-G14-Q8-P10, Festo NPQH Series Straight Threaded Adaptor, G 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style, 578342, Переходник

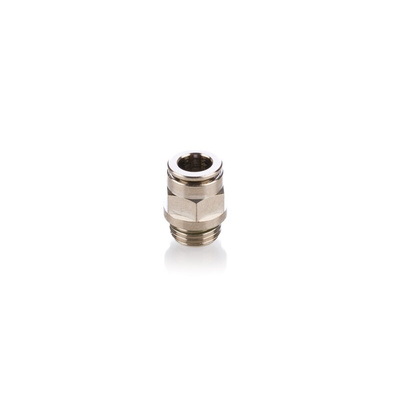

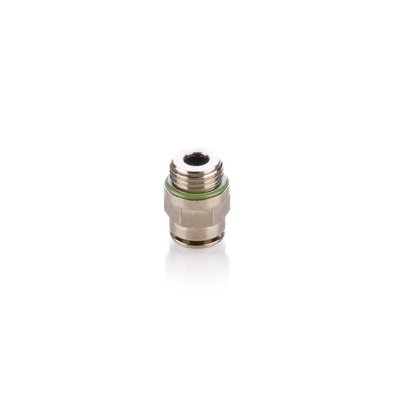

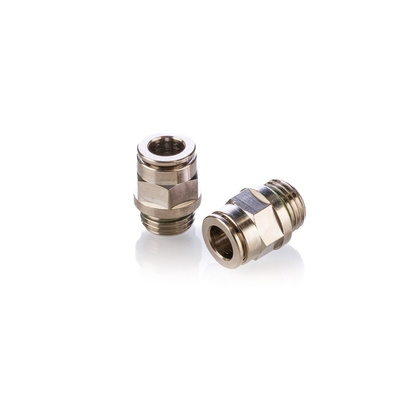

Festo Straight Threaded-to-Tube Adaptor, G1/4 Male to Push-In 8mm - NPQH-D-G14-Q8-P10

This sturdy and reliable adaptor from Festo is designed to withstand high levels of wear and tear. It's ideally suited to mobile pneumatic applications and has 2mm-thick tubing walls, so is able to withstand welding spatter. The fitting offers a push-in connection system to make a simple yet highly secure join with a compressed air hose. It tolerates high temperatures of up to +150°C and has a nickel-plated brass housing that provides outstanding resistance to corrosion. This adaptor is made from food-grade materials and is suitable for use in the food industry.

• Plug-and-work connection technology that's quick to use without the need for tools
• Highly resistant to chemicals and corrosive substances, so able to withstand frequent cleaning
• Suitable for high-performance pneumatic systems with a pressure of up to 20 bar
• Replaceable sealing ring so the connector can be re-used for improved efficiency

Applications

• Hospitals
• Food industry
• Production and assembly lines
• Automotive industry

How far do you need to insert a tube into this adaptor?

The insertion depth of a tube is dependent on its diameter. This fitting is compatible with hoses with an outer diameter of 8mm that need an insertion depth of 18mm.

Datasheet

NPQH-D-G14-Q8-P10 Specification Sheet
