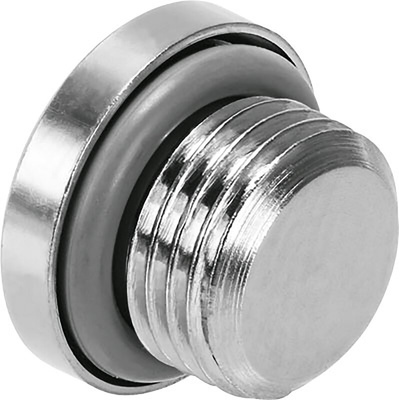

NPQH-BK-G18-P10, Festo G 1/8 Nickel Plated Brass Blanking Plug

Festo Nickel-plated Brass Blanking Plug, G 1/8 - NPQH Series - NPQH-BK-G18-P10

Prevent dirt from entering pneumatic ports when they're not in use with this blanking plug from Festo. It's simple to install and remove thanks to its handy push-in fitting. The plug is capable of withstanding high pressures, so you can rely on its safety in compressed air systems. This sturdy component is made from nickel-plated brass, which gives it good resistance to corrosion and abrasion and extends its lifespan.
Rust-resistant properties and food-grade material make it suitable for pneumatic applications in the food and beverage industry where frequent equipment washdowns are called for. This blanking plug is part of the Festo NPQH series of push-in fittings and is designed for pneumatic applications at temperatures of up to +150°C and pressures of up to 20 bar.

• Wide operating pressure range of -0.95 bar to 20 bar
• Wide ambient temperature range of 0°C to +150°C for use in harsh environments
• Good chemical resistance to prevent corrosion from solvents and abrasive cleaning substances
• Supplied with a sealing ring for improved safety
• Compact overall length of 8.5 mm and outer diameter of 13 mm for use in areas where space is restricted

Datasheet

NPQH-BK-G18-P10 Specification Sheet
