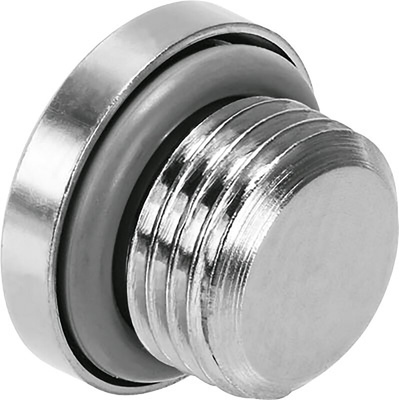

NPQH-BK-G14-P10, Festo G 1/4 Nickel Plated Brass Blanking Plug

Festo Nickel Plated Brass Blanking Plug, G 1/4 - NPQH Series - NPQH-BK-G14-P10, 578407

This versatile, general-purpose blanking plug from Festo can be used to close a threaded port connection in a variety of pneumatic applications. It has a threaded connection size of 1/4 inch and is easy to attach and remove. The powerful plug performs well in pressurised applications and can withstand forces of up to 20 bar. This quality, combined with a maximum operating temperature of +150°C, makes it particularly useful in food packing and processing applications where equipment is frequently subjected to hot, high-pressure washdowns.

• Made from nickel-plated brass for excellent resistance to corrosion
• High chemical resistance means it can tolerate abrasive cleaning agents
• Solid metal component for improved robustness, even in harsh conditions
• Good wall thickness that's not adversely affected by welding spatter
• Can be assembled in any position for improved versatility
• Festo part number 578407

Application Information

• Food and beverage industries
• Industrial automation
• Automotive production
• Medical and pharmaceutical industries

It this blanking plug food-safe?

Yes, all the materials used in the manufacture of this product are approved as food grade and pose no health risk to humans.

Can I re-use this blanking plug?

Because this plug is not a permanent connection, it can be used many times over in different applications.
