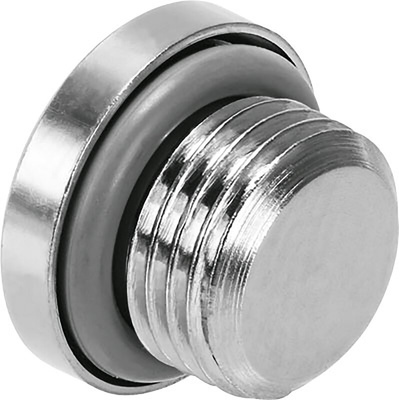

NPQH-BK-G38-P10, Festo G 3/8 Nickel Plated Brass Blanking Plug

Festo Blanking Plug, 20mm OD, G3/8 - NPQH-BK-G38-P10

Protect your pneumatic system with this blanking plug from Festo. It's a simple threaded cover that's quick and easy to take on and off as needed. A rugged fluoroelastomer (FPM) ring keeps it tightly and securely sealed, protecting against contaminants. The unit is made from abrasion-resistant brass that makes it durable enough for repeated use in tough environments. Plated in nickel, it has a high corrosion resistance class (CRC) and can withstand chemicals and high temperatures up to +150°C. Use it in the food industry and in automotive manufacturing applications.

• Standard thread size of G3/8 means it's highly compatible with pneumatic systems
• Works with pressures between -0.95 and 20 bar for increased flexibility
• Can be used with lubricants to reduce wear and tear further
• Compact solution with a length of 10mm, making it easy to fit on parts without restricting movement

Applications

• Food and beverage manufacturing
• Automotive industry
• Industrial automation and process control

How do I make sure this blanking plate is fitted correctly?

Simply tighten it to a maximum torque of 25Nm and the sealing ring will do the rest.

Datasheet

NPQH-BK-G38-P10 Specification Sheet
