AMTE-M-H-G38, Festo AMTE-M-H Brass, Bronze 10bar Pneumatic Silencer, Threaded, G 3/8 Male, Пневматический глушитель

Festo Threaded Pneumatic Silencer, G3/8, 10 Bar - AMTE-M-H-G38

This silencer from Festo is a reliable noise muffler and controls the exhausting of compressed air. It keeps exhaust sounds at safe levels and can be used with various air-preparation accessories, such as valves and cylinders. The component has a brass threaded connector for durability and high resistance to corrosion. Its bronze silencer insert not only reduces noise but also avoids premature valve failure by stopping metal chips, abrasive grit and dust from entering open exhaust ports. You can rely on this silencer in pressure applications of up to 10 bar.

• Compact for improved efficiency when building a pneumatic system
• Can be assembled at any angle giving enhanced versatility in use
• Suitable to use with both non-lubricated and lubricated compressed air
• Provides effective balance between exhaust flow rate and noise reduction for high performance

Applications

• Aerospace
• Air dryers
• Medical and dental equipment
• Pumps and refrigeration

Do I need to clean this silencer?

All pneumatic silencers benefit from periodic cleaning, especially if your equipment has been in use for a long time. After soaking your silencer for a few minutes, scrub it lightly with a nylon brush and then blow it dry with clean compressed air.

Festo metal AMTE series pneumatic silencers are designed to reduce noise levels from air exhaust in pneumatic systems and pipes. Acting as a muffler which is essential for reducing sound to safe decibel levels within industrial work environments and improving user comfort. AMTE exhaust silencers have the ability to reduce noise to levels below 88dbA.

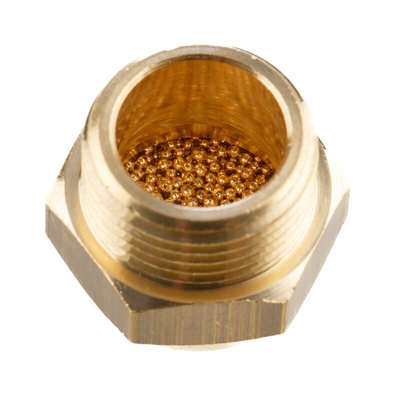

The AMTE-M-H-G38 is manufactured with a brass threaded body and bronze silencer insert which can be used in lubricated pneumatic systems.

• Bronze silencer insert
• Brass threaded plug
• Weight 17g
• Screw thread for simple connection

Datasheet

AMTE-M-H-G38 Specification Sheet
