NPQP-L-R14-Q6-FD-P10, Festo NPQP Series Tee Threaded Adaptor, R 1/4 to Push In 6 mm, Threaded-to-Tube Connection Style, 133054, Переходник

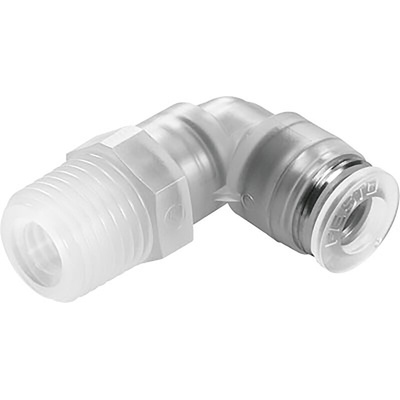

Festo Pneumatic Fitting, Right Angle, Polypropylene Body Material- NPQP-L-R14-Q6-FD-P10

Connect two tubes at a right angle with this L-shaped pneumatic fitting from Festo. It has one threaded end to make a firm attachment to an air supply, along with a push-in connector at the other end to make tube changeovers quick and easy. The high-alloy steel retaining claw holds pipes securely without causing damage and is resistant to corrosion, so won't degrade in damp conditions. A wide operating temperature between -20°C and +60°C and a maximum operating pressure of 10 bar means this is a suitable option for manufacturing and processing environments.

• Transparent body makes it easy to monitor the line for blockages
• Standard R1/4 thread size for compatibility with existing systems
• Thermoplastic material helps to give the fitting a light weight of 5.5g for use in suspended pipelines

Applications

• Process control and automation
• Clean rooms
• Medical industry
• Food and beverage

Can I use this polypropylene pneumatic fitting as an alternative to stainless steel?

Yes. This pneumatic fitting is resistant to chemicals, cleaning agents and hydrolysis, making it food safe and a suitable alternative to stainless steel.
