NPQH-L-M5-Q4-P10, Festo NPQH Series Elbow Threaded Adaptor, M5 Male to Push In 4 mm, Threaded-to-Tube Connection Style, 578276, Переходник

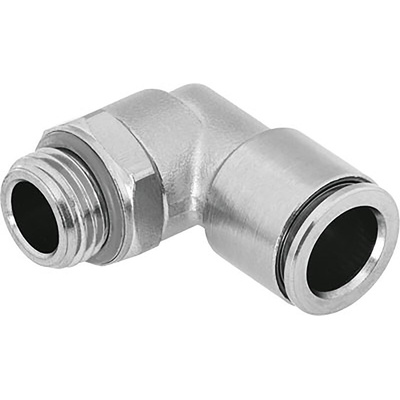

Festo Elbow Threaded Adaptor, M5 Male to Push-In 4 mm - NPQH Series - NPQH-L-M5-Q4-P10

When you're looking for a right-angle adaptor to connect pneumatic tube fittings, choose this Festo elbow threaded adaptor. It joins push-in and threaded fittings with a compact, 90-degree angle design, which lets you make changes to pressure direction where space is tight. The unit includes a swivel connection and inline mounting that, combined with a push-pull design principle, allows for quick and simple installation. The brass construction and non-corrosive nickel plating resists chemicals and cleaning agents, and the 2 mm tubing wall is able to withstand welding splatter.

• Maximum tightening torque of 1.5 Nm for secure fittings
• Versatile operating temperature range of 0°C to +150°C for multiple industrial applications
• Durable brass thread material

Application Information

• Automotive production and repairs
• Industrial automation
• Food processing and production

What size of pneumatic fittings is this adaptor designed for?

This elbow threaded adaptor is used to connect M5 male fittings in port 1 and push-in 4 mm fittings in port 2.

Can this adaptor withstand high-pressure applications?

Yes, it's built for systems with pressures up to 20 bar and can be used in conjunction with a pressure booster.

Datasheet

NPQH-L-M5-Q4-P10 Specification Sheet

Declaration of Conformity
