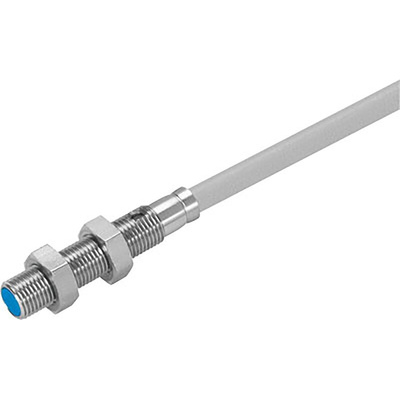

SIEN-M5B-PO-K-L, Festo Inductive Barrel-Style Proximity Sensor, M5 x 0.5, 0.8 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

FESTO SIEN Series Inductive Proximity Sensors

Festo SIEN round design inductive proximity sensors for the detection of metallic articles passing the sensor at short range.
Inductive sensors are unaectd by oil, dirt or surface fnish and can be used in high vibration and high shock areas.

Features and Benefits

• PNP Switch output

• Flush mounting installation

• Available with open-ended or plug electrical connections

• M5 or M8 sizes available

• Standard switching distance

• Free of copper & PTFE, conforming to RoHS

• Temperature range of -25 to 70°C

• IP67 Protection Class

Applications

Inductive proximity sensors are great for detecting metals even if they are ferrous or non-ferrous, because of this they have many useful applications including:

• Industrial machinery used to detect metal

• Metal detecting equipment used on Oil rigs

SIEN-M5B-PO-K-L Inductive Proximity Sensor

• IP67 rated

• Yellow LED

• Ambient Operating Temperature: -25 to 70°C

• Max. output current of 200 mA

• Max. switching frequency of 5,000 Hz

SIEN-M5B-PO-K-L Specification Sheet
