SIEH-M12B-PS-S-L, Festo SIEH Series Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 10 → 30 V dc,, Индуктивный датчик приближения

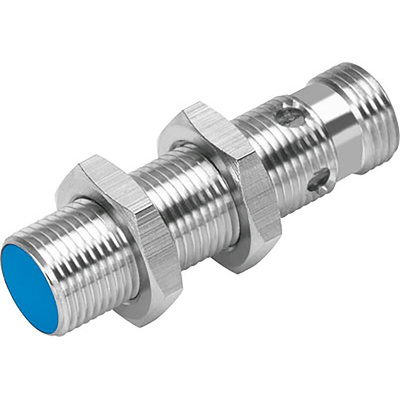

Festo M12 x 1 Inductive Proximity Sensor, Barrel - SIEH Series - SIEH-M12B-PS-S-L

Need to detect metallic objects at short range? This barrel-bodied inductive proximity sensor from Festo will do the job. It's unaffected by dirt, oil or surface finish and can be used in areas where high vibration and shock can be expected. The PNP (positive-negative-positive) output connects to the positive when the sensor detects metal within a range of up to 4 mm. It can operate at temperatures from -25˚C to +70˚C, making it suitable for a wide range of industrial environments, and it's rated IP (ingress protection) 65, so it's dust-tight and protected from jets of water.
Proximity sensors like this are commonly used in factory automation as short-circuit protection and reverse polarity protection reduce the risk of damage to systems.

• Nickel-plated brass construction for corrosion resistance
• Housing made from durable PBT (polybutylene terephthalate) and polyamide
• Flush mounting style is ideal for embedding in a panel
• Supply voltage of 10 to 30 V DC is safe to use
• M12 x 1 thread size is compact and easy to work with

Datasheet

Datasheet

Datasheet

SIEH-M12B-PS-S-L Specification Sheet

Instruction Sheet - SIEH-M12B-PS-S-L
