CRVZS-0.1, Festo Air Reservoir 100 ml, G 1/8, CRVZS Series, 16bar

Festo Air Reservoir, G1/8 Port Connection, 0.1L Volume - CRVZS-0.1

Ensure an adequate supply of media in your pneumatic system using this air reservoir from Festo. It serves as a temporary storage unit for excess supply of compressed air and a supply unit to accommodate an increase in demand. For added versatility, you can combine it with a flow control valve for precise air supply at pre-determined levels. This unit is compatible with both compressed air and nitrogen, making it a versatile choice. A wide operating temperature range between -10°C and +100°C means it can withstand extreme conditions.

• Light weight of 226g for minimal strain on equipment
• High-alloy steel body is corrosion-resistant for long-term use in damp conditions
• Broad operating pressure range between -0.95 and 16 bar can withstand both low and high-pressure applications

Applications

• Gas plants
• Manufacturing industry
• Water-treatment facilities

How do I install this air reservoir?

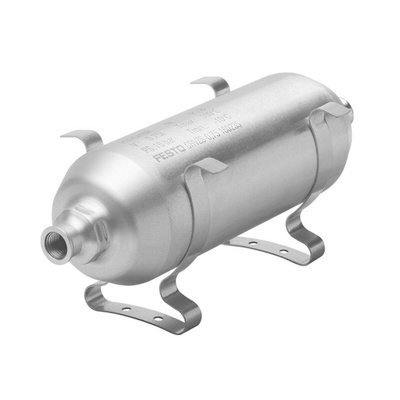

You can install this air reservoir by attaching it to a compressor unit through an air-line connection. It comes with a standard G1/8 threaded port for quick, tool-free mounting in your pneumatic system. Thanks to included durable steel mounting brackets you can mount it vertically or horizontally.

Datasheet

CRVZS-0.1 Specification Sheet
