CRVZS-0.4, Festo Air Reservoir 400 ml, G 1/4, CRVZS Series, 16bar

Festo Air Reservoir, 400ml Volume, High-Alloy Steel Construction - CRVZS-0.4

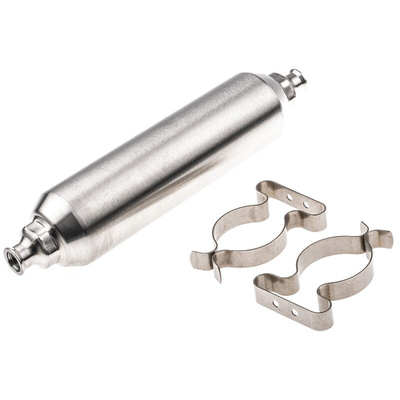

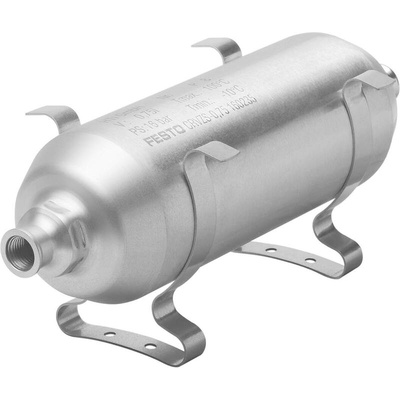

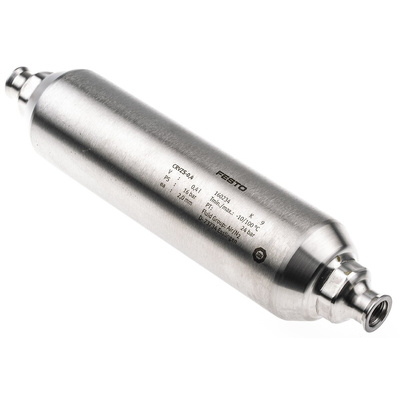

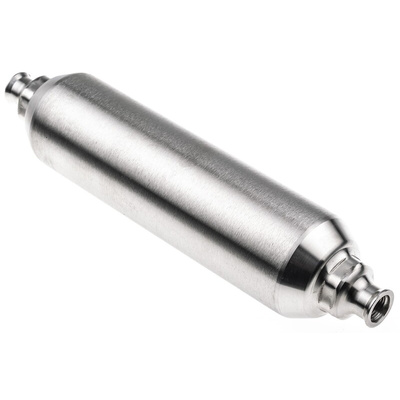

Maintain constant pressure in your pneumatic system with the help of this air reservoir from Festo. It stores air from a flow valve and delivers this to your equipment in case of a fluctuation in supply. The tank is made of non-corroding high-alloy steel that stands up to impact, making it fit for use in harsh environments. It comes with easy-to-install fixing clips for quick and secure mounting. Tipping the scales at just 543g, it's no problem to handle during assembly and won't weight down your setup.

Features & Benefits

• Safe to use in demanding conditions thanks to an operating temperature range from -10°C to +100°C
• Can be assembled in any position to suit your design needs
• Works safely at operating pressures between 0.95 and 16 bar, so you can use it for light-duty and heavy-duty applications
• Free of copper and PTFE to prevent contamination

Applications

• Water treatment plants
• Agricultural equipment
• Oil and gas industry

How much air does this reservoir hold?

This unit has a capacity of 400ml compressed air or nitrogen, so you can rely on it for backup in small systems.
