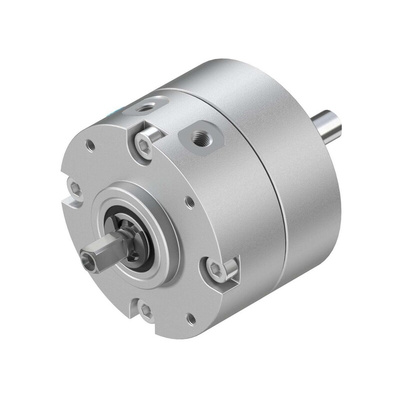

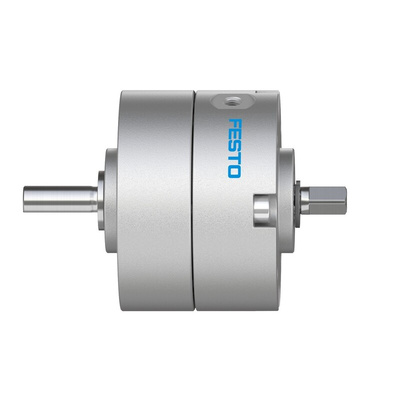

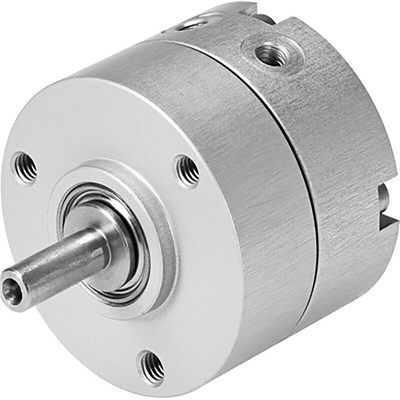

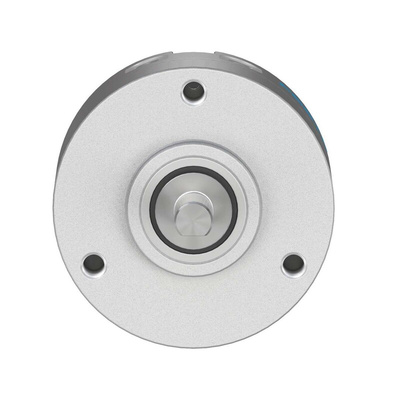

DRVS-6-180-P, Festo DRVS Series 8 bar Single Action Pneumatic Rotary Actuator, 180° Rotary Angle, 6mm Bore

Festo Pneumatic Rotary Actuator, 3.5 to 8 Bar Operating Pressure, 15N Maximum Radial Force - DRVS-6-180-P

Use this pneumatic rotary actuator from Festo to control movement in rotating equipment. It consists of a vane mounted on a shaft that converts energy from compressed air to kinetic energy. These components are enclosed in an anodised wrought aluminium alloy housing that can withstand impact and abrasion, making the actuator suitable for use in harsh environments. A swivel angle of 180° ensures it's useful for upward and downward movement in pistons that travel in opposite directions. You'll find actuators like this commonly used in the automotive industry.

• Operating pressure range of 3.5 to 8 bar makes it a versatile tool for both medium-duty and heavy-duty applications
• Elastic cushioning at both ends reduces noise and friction for improved performance
• Wide operating temperature range of 0°C to +60°C for use in demanding conditions
• Compatible with proximity switches for automated operation

Applications

• Medical equipment
• Chemical production plants
• Robotics and automation systems

How do I mount this rotary actuator?

There are several ways to mount this actuator. You can use the internal threads, through holes on the outer edges of the device or the centring collar to secure the unit to your equipment.
