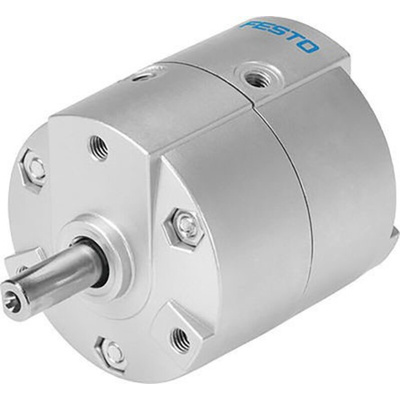

DRVS-16-90-P, Festo DRVS Series 8 bar Single Action Pneumatic Rotary Actuator, 90° Rotary Angle, 16mm Bore

Festo Rotary Actuator, Single Acting, 90° Swivel, 16 mm Bore - DRVS series - DRVS-16-90-P

When you want to achieve a smooth turning or twisting motion in your automation system, opt for this semi-rotary actuator from Festo. It's simple to operate as it has just one button and needs only one connecting cable for installation. To ensure a long service life, it has a no-contact position-sensing system that reduces wear and tear. Flexible elastic cushioning ring plates ensure quick deceleration, while effectively reducing backpressure. The nickel-plated steel drive shaft is tough and enhances corrosion resistance.

• Bore size of 16 mm
• Cushioning angle of 0.5°
• Swivel angle of 0° to 90°
• Single-acting operation
• Operating pressure range of 2.5 bar to 8 bar
• Maximum swivel frequency of 3 Hz at 6 bar
• Lubricated operation possible
• Operating temperature range of 0°C to +60°C
• Maximum axial force of 25 N
• Maximum radial force of 30 N
• Weight of 272 g
• Internal female thread for mounting
• M5 pneumatic connection

Range Information

• The DRVS series is Festo's lightweight, compact and reliable range of double-acting semi-rotary drives with rotary vanes
• Robust construction ensures protection against water and dust
• Items are quick to assemble without the need to manually search for switching points
• Units are available in a wide range of sizes
