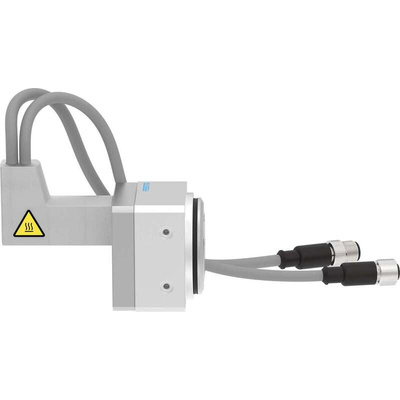

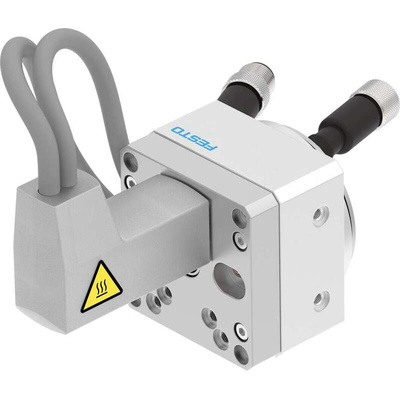

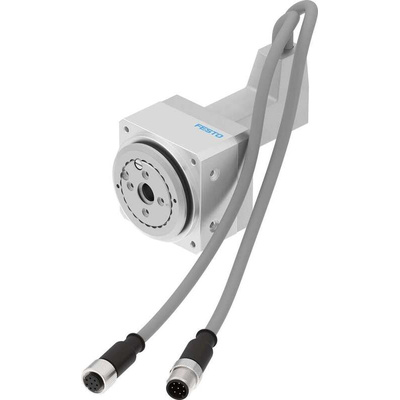

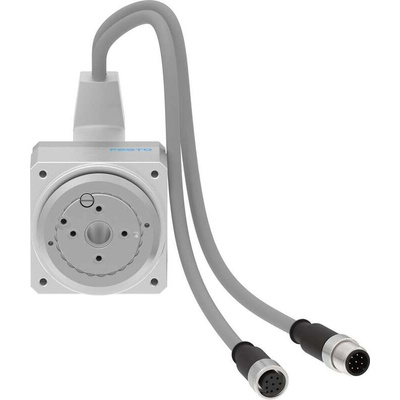

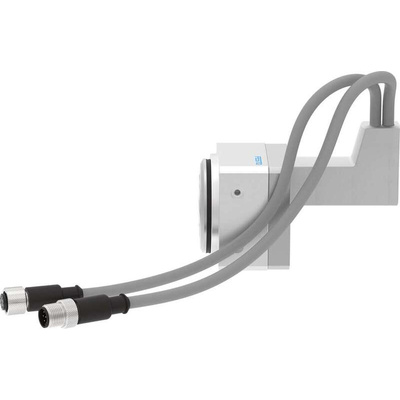

ERMO-12-ST-E, Festo Single Action Pneumatic Rotary Actuator, 1.8° Rotary Angle, 12mm Bore

Festo Pneumatic Rotary Actuator, M12 Port Connection, Non-Cushioned - ERMO-12-ST-E

To control your system with precision, turn to this rotary actuator from Festo. It combines the easy handling you'd expect from a pneumatic cylinder with the functionality of an electric drive to make positioning parts a breeze. It's built to compact dimensions, with a 12mm bore, so saves space in your installation. You'll find it a doddle to fit, as no specialist knowledge of electric drive technology is needed. The stepper motor provides accurate speed control and repeatability and, with no contact brushes to maintain, you're assured of a long service life.

Features & Benefits

• Heavy-duty bearing means it can handle high forces and torques
• Hollow shaft can function as energy feedthrough for attachments
• Parameterisation and commissioning via web server makes it quick to configure

Applications

• Factory automation
• Packaging lines
• Materials handling

What should I consider when picking a rotary actuator?

Key things to consider when choosing a rotary actuator include the rotation angle and the force it's capable of transmitting. This actuator has a rotation angle of 1.8° and a force of 500N at 7 bar, making it suitable for moving heavy objects across relatively small distances.
