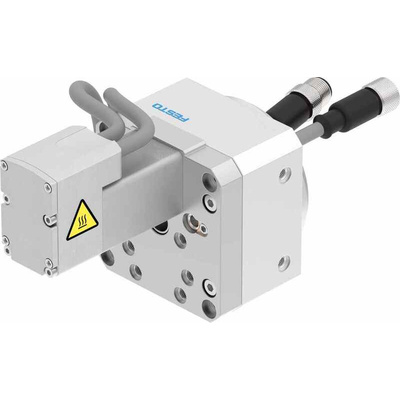

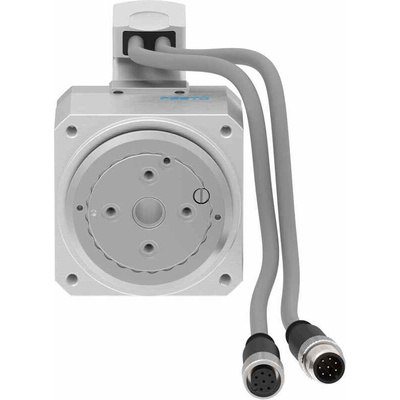

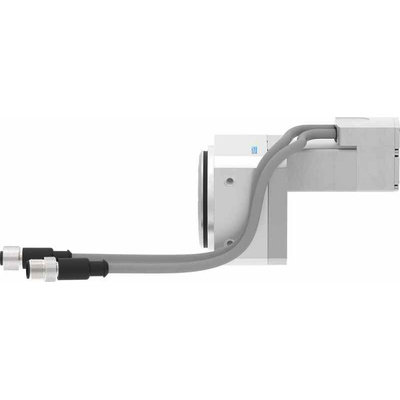

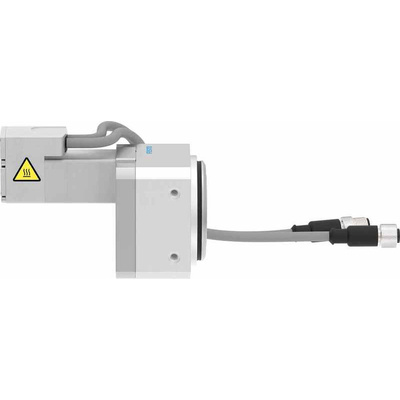

ERMO-16-ST-E, Festo ERMO Series Single Action Pneumatic Rotary Actuator, 1.8° Rotary Angle, 16mm Bore

Festo Single-Action Pneumatic Rotary Actuator, 1.8° Rotary Angle, 16 mm bore - ERMO Series - ERMO-16-ST-E

This pneumatic rotary actuator from Festo converts air pressure to oscillatory motion in the rotary valves of machines. As it features a servo motor and an encoder, this device can operate as both a cylinder and a drive for greater versatility. It's a single-action actuator that has air supplied to one side of its piston, meaning it conserves air pressure during operation. Thanks to its heavy-duty bearings, it's ideal for applications involving high linear and turning forces. You can use this unit in situations where the precise rotational motion of valves is critical.

• Can be assembled in any position for ease of installation
• Axial force of 600 N and radial force of 750 N at 7 bar for use in heavy-duty applications
• Programmed for simple remote configuration via a web browser

Application Information

• Positioning applications
• Packing systems
• Material handling

How do I install this actuator?

As there are two connection ports for the motor and the encoder, installation of this device is simple. You can also mount it either at the side with six mounting screws, or from the rear with two.
