MS4-LFR-1/8-D7-CRV-AS, Festo MS4-LFR Filter Regulator, 5μm, G 1/8, Automatic, Фильтр-регулятор

FESTO MS-LFR Series Filter Regulators

The FESTO MS-LFR series offers a combined pressure regulator and filter. The MS4 and MS6 pneumatic filter regulators remove contaminants from compressed air down to a particle size of 5 μm or 40 μm (dependent on filter cartridge). The MS series regulators have a high flow rate and integrated return flow for exhausting air from port 2 to port 1.

Features and Benefits

• Constant output pressure with return flow


• Choice of fully automatic or manual drain


• Plastic or fully integrated metal bowel guard


• Can be fitted with analogue pressure gauge or sensor with LCD display


• Rotary knob with a detent can be locked to prevent setting changes


• Available in pressure ranges 0.3 bar to 7 bar and 0.5 bar to 12 bar


• Available with G1/8 or G1/4 ports

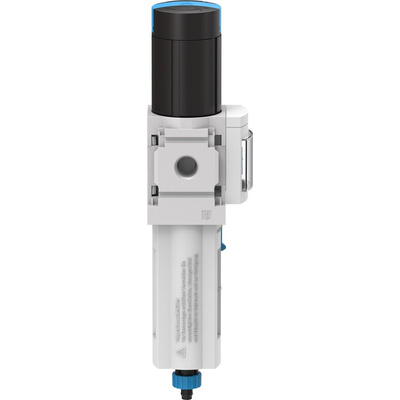

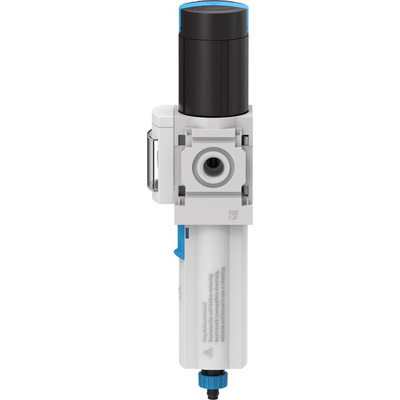

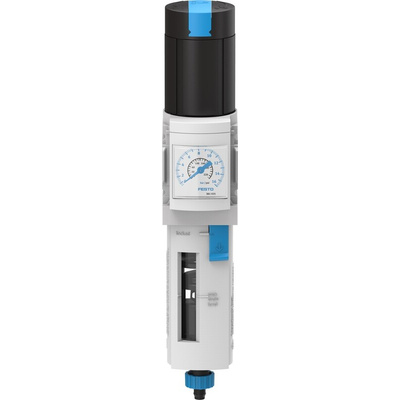

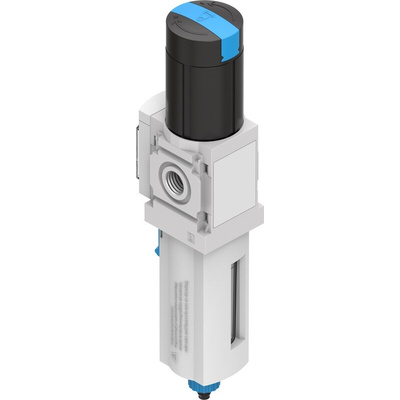

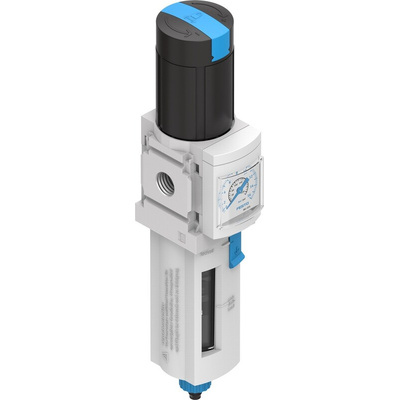

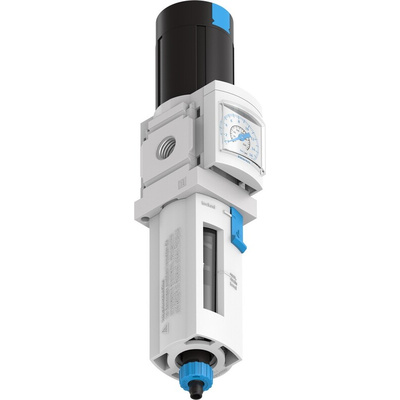

Festo MS4-LFR Filter Regulator, 5μm, G 1/8 - MS4-LFR-1/8-D7-CRV-AS

This is a compact filter regulator designed for pneumatic systems. It combines filtration and pressure regulation in a single unit. With a 5 μm filter, a lockable regulator head, and a plastic bowl guard, this filter regulator ensures efficient air quality control. The fully automatic condensate drain enhances reliability, making it suitable for various industrial applications

Features & Benefits

• Accommodates 1/8-inch G1/8 pneumatic connections. Its compact size allows installation in tight spaces
• The built-in pressure gauge enables real-time monitoring of system pressure
• The rotary knob with detent can be closed with accessories, preventing accidental adjustments
• The 5-micron filter efficiently removes contaminants, ensuring clean air supply
• The filter regulator automatically expels condensate, maintaining optimal performance

Applications

• Ideal for use in automated assembly lines, robotics, and conveyor systems
• Facilitates air supply and exhaust in pneumatic circuits
• Suitable for laboratory setups due to its compact design

Is the MS4-LFR-1/8-D7-CRV-AS suitable for use in aggressive environments?

Yes, it performs well even in challenging conditions.

What is the maximum output pressure of this unit?

It can handle a maximum output pressure of 12 bar.

Does it come with a pressure gauge?

Yes, it includes an integrated pressure gauge.

What is the weight of the MS4-LFR-1/8-D7-CRV-AS filter regulator?

The product weight is 275 grams.
