MS4-LR-1/8-D6-AS, Festo G 1/8 Pneumatic Regulator - 0.8bar to 14bar, 1/8in, 7bar max. input, 529423, Регулятор

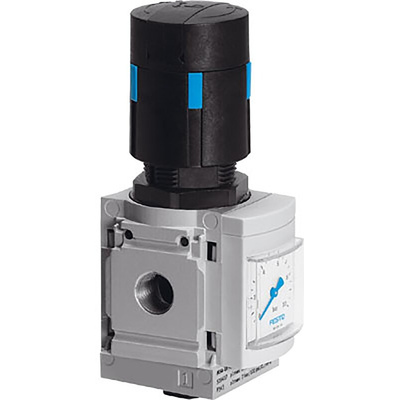

Festo Pneumatic Regulator, 1150L/min Flow Rate, 0.3 to 7 Bar Outlet Pressure - MS4-LR-1/8-D6-AS

Accurately control air pressure in your pneumatic system with this regulator from Festo. Also known as a pressure-reducing valve, it helps to maintain a stable output for your air-controlled devices to prevent leakage and damage to your components. This device can handle up to 14 bar of operating pressure, so it's a good choice for heavy-duty industrial applications. You can use it safely in demanding environments thanks to an operating temperature range between -10°C and +60°C.

• Die-cast aluminium housing and base for durability and resistance to corrosion
• NBR seals prevent air from leaking for optimal performance
• Light weight of 225g adds minimal strain on your equipment
• Integrated pressure gauge for easy monitoring and troubleshooting
• Can be assembled in any position for flexibility

Applications

• Water treatment facilities
• Oil and gas plants
• Chemical laboratories

How do I use this regulator?

The regulator has a rotary knob that you turn to set the appropriate pressure for your setup. This knob is lockable to allow you to carry out maintenance safely.

Regulators and Filter Regulators

Datasheet

MS4-LR-1/8-D6-AS Specification Sheet
