MS4-LR-1/8-D7-AS, Festo G 1/8 Pneumatic Regulator - 0.8bar to 20bar, 1/8in, 12bar max. input, 529425, Регулятор

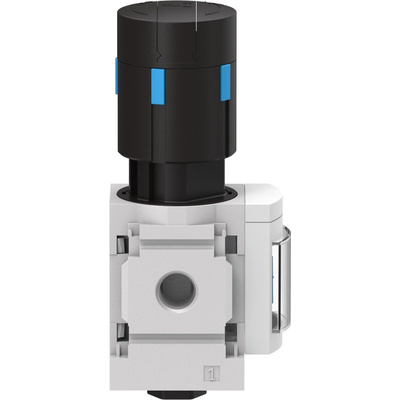

Festo Pneumatic Regulator, Lockable, 0.5 to 12 Bar Pressure Regulation Range - MS4-LR-1/8-D7-AS

Keep the balance of pressure in your equipment with this pneumatic regulator from Festo. When the output pressure reaches a specific level, it quickly cuts off the supply to maintain a set point. Thanks to the top-mounted rotary knob, you can adjust the setting to the precise value you want in a regulation range between 0.5 and 12 bar. This knob is lockable to help keep it safe from tampering or accidental resetting.

Features & Benefits

• Versatile, as it works with both lubricated and unlubricated air
• Operating pressure range of 0.8 to 14 bar to work in applications with low and high pressure
• Can be assembled in any position for flexibility
• Durable NBR seals resist oils and solvents, so can tolerate contaminated environments

Applications

• Assembly plants
• Food production and packaging
• Irrigation equipment

How do I monitor the pressure setting of this pneumatic regulator?

As the product comes with a built-in analogue pressure gauge, it's easy to keep an eye on your system's status.

What's the maximum flow rate this component can handle?

The regulator supports a standard nominal flow rate of 1000L/min, making it suitable for high-flow pneumatic systems.

Regulators and Filter Regulators

Datasheet

MS4-LR-1/8-D7-AS Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
