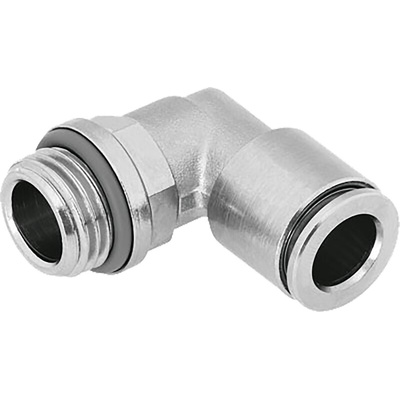

NPQH-L-G12-Q12, Festo NPQH Series Elbow Threaded Adaptor, G 1/2 Male to Push In 12 mm, Threaded-to-Tube Connection Style, 578292, Переходник

Festo Elbow Threaded Adaptor, 20 Bar, 2mm Wall Thickness - NPQH-L-G12-Q12

Use this elbow adaptor from Festo to establish connections and direct flow of compressed air and fluid in pneumatic and hydraulic systems. The unit is made of brass to ensure a high level of durability. This material also makes it suitable for use with a wide range of gases and fluids. On one end there's a G1/2 male threaded connection and on the other end is a push-in connection to accommodate hoses. With a maximum operating pressure of 20 bar, this component is designed for heavy-duty industrial applications. You'll find it frequently used in the food industry for the safe transfer of chemicals and cleaning agents.

• Nickel-plated brass for maximum corrosion resistance
• High temperature resistance of up to +150°C means it's safe to use with hot liquids and gases

Applications

• Automotive industry
• Robotics and factory automation
• Food industry

Is this adaptor food safe?

Yes, it is. This adaptor is non-corrosive, so it won't decay due to rust. It also has a smooth surface that prevents particles from sticking to it, reducing the risk of contamination and making it suitable for food-grade applications.

Datasheet

NPQH-L-G12-Q12 Specification Sheet
