NPQH-D-G12-Q10-P10, Festo NPQH Series Straight Threaded Adaptor, G 1/2 Male to Push In 10 mm, Threaded-to-Tube Connection Style, 578349, Переходник

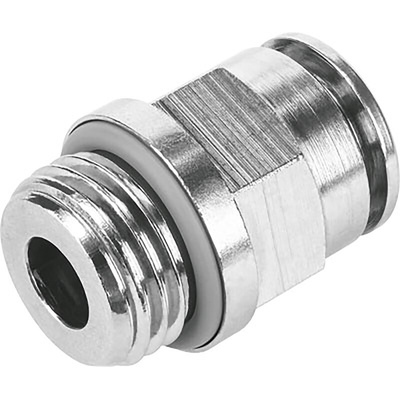

Festo Straight Threaded-to-Tube Adaptor, G1/2, 10mm - NPQH-D-G12-Q10

This pneumatic adaptor from Festo is designed for high-pressure applications in demanding environmental conditions. It features push-in connection technology on one end to make installation quick and simple. A G1/2-thread connector on the other end can be reused multiple times thanks to its replaceable sealing ring. This all-metal component is highly resistant to cleaning agents and corrosion, which makes it an ideal choice for areas that need regular washdowns. It tolerates high temperatures up to +150°C and pressures up to 20 bar.

• Absorbs vibration and pressure surges for improved levels of safety and productivity
• Nitrile-rubber sealing ring provides an air-tight seal with minimal effort
• Rotatable, so it can be aligned after mounting for improved convenience
• Push-pull principle for simple installation

Applications

• Food and beverage industry
• Medical and pharmaceutical industries
• Testing and diagnostic equipment

How do I know if my tubing is properly inserted into the connector?

You can check this by simply pulling on the tube and ensuring the connector retains its hold. Before connecting your hose, you should ensure that it's cut to straight lengths and deburred, which helps to improve the durability of the connection.

Datasheet

NPQH-D-G12-Q10 Specification Sheet
