VBNF-LBA-G18-Q6, Festo Piloted Pneumatic Relay Pneumatic Manual Control Valve VBNF Series, G 1/8, 1/8in, 547885, Клапан

VBNF Series Check Valves

Festo VBNF series check valves with a piloted non-return function and a manual exhaust function. The piloted non-return function can be used for a intermediate stop. If a pilot signal is applied, the exhaust air can escape. If no pilot signal is applied, the valve shuts off the exhaust air from the drive and the drive stops temporarily. The integrated manual exhaust function can be used to manually vent a pneumatic drive.

Features and Benefits

Operating pressure 0.2 bar to 10 bar
Compact size
High flow rate
Can be rotated horizontally through 360°

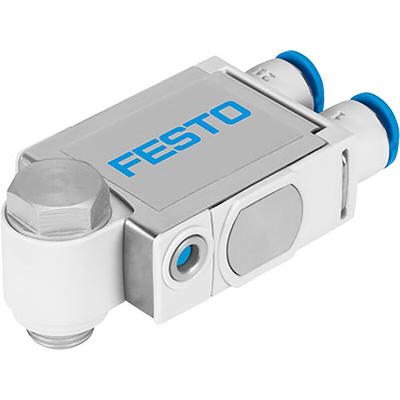

Festo VBNF Series Pneumatic Manual Control Valve, PBT Body, 500L/min Maximum Flow Rate - VBNF-LBA-G18-Q6

This pneumatic manual control valve by Festo is designed to provide precise control in pneumatic systems within automation, electronics, electrical, and mechanical industries. The valve features a durable body material made of PBT, ensuring long-term reliability. With a G 1/8 connection port, it offers easy installation and compatibility with various pneumatic systems. The maximum flow rate of 500 L/min, operating pressure of 10 bar, and temperature range from -10°C to +60°C make this valve suitable for a wide range of applications.

Features & Benefits

• PBT body material ensures durability and resistance to harsh operating conditions
• G 1/8 connection port allows for easy integration into existing pneumatic systems
• Maximum flow rate of 500 L/min enables efficient operation
• Operating pressure of 10 bar provides reliable performance in various applications
• Temperature range from -10°C to +60°C allows for versatility in different environments
• Pneumatic relay function offers precise control over pneumatic systems

Applications

• Ideal for use in pneumatic automation systems
• Suitable for electronic control applications
• Perfect for controlling pneumatic actuators in electrical systems
• Used in mechanical machinery for precise pneumatic control

Can it withstand high operating pressures?

Yes, this pneumatic manual control valve is designed to operate effectively at pressures up to 10 bar.

Will it work in extreme temperature conditions?

The valve can handle temperatures ranging from -10°C to +60°C, making it suitable for a variety of environments.

Manual Control Valves

Datasheet

VBNF-LBA-G18-Q6 Specification Sheet
